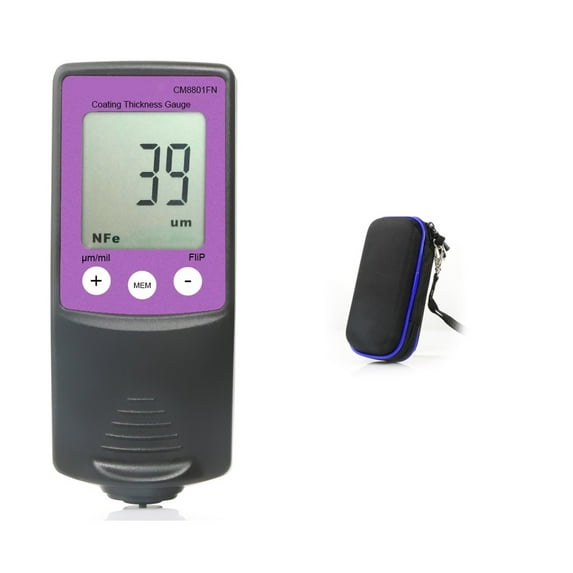

Digital Coating Thickness Gauge Width Measuring Instrument Paint Film Coating Teste Car Paint Electroplate Coating Tester ,Fast and Reliable

1.Items:CM8801FN

2.Measuring range:0~1250µm; 0~50mil

3.Resolution:0.1m @ (0~99.9m); 1m @ (100~1250m)

4.Indication error:±(2+3%*H)m;

5.Min measuring area:Magnetic material 25×25mm;

Non magnetic material 25×25mm

6.Min curvature:Convexity 5mm; concave 30mm

7.Min substrate thickness:Magnetic material 0.2mm;

Non magnetic material 0.05mm

8.Screen:2.0 inches large screen, TN-LCD

9.Memory:Last 10 reading

10.Units:mil/µm(1mil=25.4µm; 1µm=0.03937mil)

11.Battery specification:1×1.5V AAA(not included)

12.Working temp and humidity:0C~50C, 10%~80%RH

13.Storage tempand humidity:-10C~60C, 10%~70%RH

14.Basic measurement:Single measurement

15.Memory/Delete record :No

16.The screen Flip:yes

17.Calibration:Zero-spot calibration/Calibration-film calibration

18.Limiting value measurement:yes

Packing

1 x Coating Thickness Gauge

1 x Pouch bag

1 x English manual

1 x Iron substrate

1 x Aluminium substrate

4 xcalibration film
