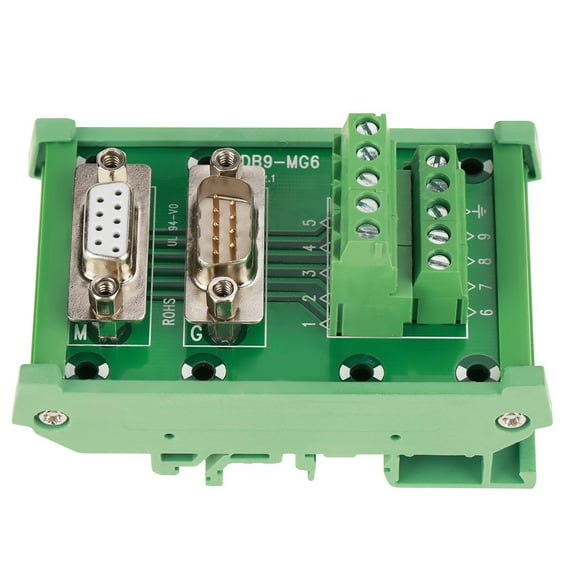

DB9 DIN Rail Interface Module, Male/Female Connector, Terminal Block, 35mm C45 Rail Compatible

Product Description DB9-MG6 DIN Rail Mount Interface Module Male / Female Connector Breakout Board
Specification:
Features: 100% and
This is DB9 DIN rail mount interface module, male / female connector breakout board, terminal block. Compact structure, made up of screw terminal block, PCB carrier, FR-4 glass fiber PCB. This DB9 DIN Rail Module is made of material, Eco-friendly terminal and by delicate workmanship treatment, with long serving life Gold plated DB head, for enhancing the stability of signal transmission
Din rail mountable, for C45 rails of 35mm width.
Specifications: Model: DB9-MG6 Terminal Pitch: 5.0mm Rated voltage: 48V Rated current: 1A
Size: 8.5 x 5.5cm / 3.35 x 2.17in Weight: 123g
Package included: 1 x DB9 DIN Rail Module
Special note: the base needs to install it by yourself, because after installation, it is easy to damage in the logistics transportation, please understand!

Product Features Compact structure, made up of screw terminal block, PCB carrier, FR-4 glass fiber PCB.This DB9 DIN Rail Module is made of material, Eco-friendly terminal and by delicate workmanship treatment, with long serving lifeGold plated DB head, for enhancing the stability of signal transmissionDin rail mountable, for C45 rails of 35mm width . This is DB9 DIN rail mount interface module, male / female connector breakout board, terminal block. Technical Specifications ModelDB9-MG6Terminal Pitch5.0mmRated voltage48VRated current1ASize8.5 x 5.5cm / 3.35 x 2.17inWeight123g
