HaoXun 40PCs RGB LED Strip Connectors Kit for 5050 SMD 4-Pin Lights, No Soldering Easy Install, Flame Retardant 12V-24V LED Light Bar Accessories

LED Light Strip Connectors Set For SMD 5050 Multicolor LED Strip 12V-24V
Features：
NO NEED SOLDERING - 2020, we found the easiest way to connect RGB led light: Just slot the strip light into connector and clamp the cover, you can achieve the firmly stable connection.
AND - The connector is made of flame retardant, the working temperature is -40 ℉ ~ 221℉, which ensures our connector more and safer.
- Fits all 4 Pin 10mm 3528/5050 wide RGB LED strips. Non- light strips can be installed directly. Need to strip the the area when used for LED strips.
HUMANIZED - listening to all feedback from customers, we have upgraded the positioning slot at each connection port of the connector to help you insert the light strip easily. Also, we equipped with triangular plates to help you quickly open the connector. Specification:
The connectors apply to 4-Pin 5050 RGB LED SMD Light Strip.
Applicable light strip width: 10mm(0.39inch)
Applicable light strip thickness: 0.3mm-0.4mm
Applicable lines range: AWG22#/20#
Current: 5A, AC,
Voltage: 12-24V
Working temperature: -40℃ +105℃
Breakdown voltage: 1500V, AC/min
resistance: 30mΩMAX
Insulation resistance: 1000mΩMIN
Product traction: >12N
Product Material:Housing: Nylon 66UL94V-0;Contact: Over brass tin
CONNECTOR INSTRUCTIONS:
Ensure your light strips work well.
Cut along the suggested line of the LED strip evenly.
when used for LED strips, please strip the the area (about 0.25inch).
the "+" the light strip with the side with the cover the connector. Ignore the RGB/BGR labels, which are irrelevant.
Slide the LED strips to the connector from the slots the connector sides.
Make sure that each metal pin the connector is above the brass point of the light strip.
Turn the power to make sure that each LED is working. Then close the lids of connectors.
Note:
Please allow 0.5-1cm errors due to manual measurement
Due to the difference between differentmonitors, the picture may not reflect the actual color of the item.

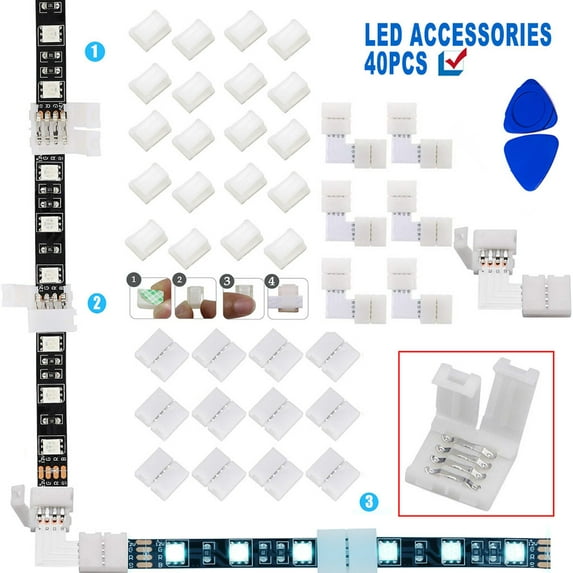

Package content:
12 × connectors,
6 × L connectors,
20 × LED strip clips,
2 × triangular,
