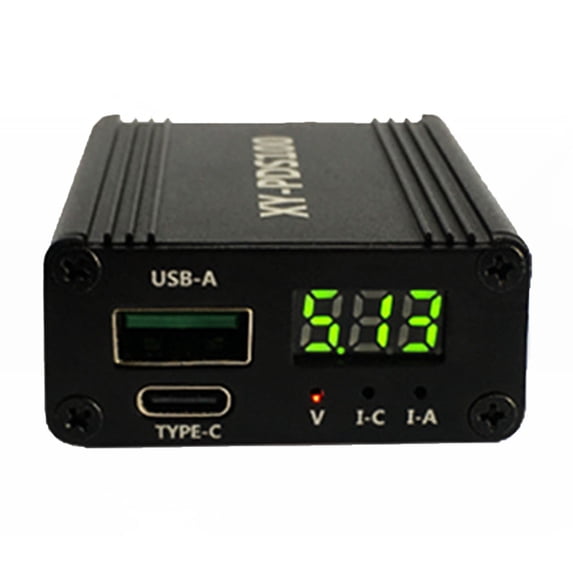

PDS100 QC3.0 Type-C DC12-28V 100W Step Down Mobile phone quick charger module

brand new and high quality

Features:
1. Display USB-A/Type-C voltage and current, and can intelligently switch the displayed content:
When there is no current at the C/A port, only the current voltage is displayed;
When there is only A port output, the voltage and A port current will be displayed in turn;
When there is only C port output, the voltage and C port current are displayed in turn;
When the A and C ports output at the same for time, the voltage, A port current, and C port current will be displayed in turn.
2. After activating the fast charge protocol, the digital tube will display the output fast charge protocol type:
nOn——no agreement is triggered
QC2——C2.0
QC3——C3.0
FCP——FCP
SCP——SCP
PD Fix——PD2
PPS——PD3
PE1.1——PE1
PE2.1——PE2
LVDC——Ldc
3. If the fast charger module is not used within 10 minutes, the digital tube will be automatically turned off, and only the Led indicator will remain, which is energy-saving and environmentally friendly, with low power consumption.

Specifications:
Product name: Quick Charger Step Down Module
Input: for DC 12-28V 100W Max
Input: PD Recommended 87W
Output-C: 5-20V 100W Max
Output-A: 5-12V 36W Max
Material: ABS
Size: app.53x46x21mm/2.09x1.81x0.83in
Color: Black
Quantity: 1pc

Note:
Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package includes:
1 x Quick Charger Module(other accessories demo in the picture is not included.)
