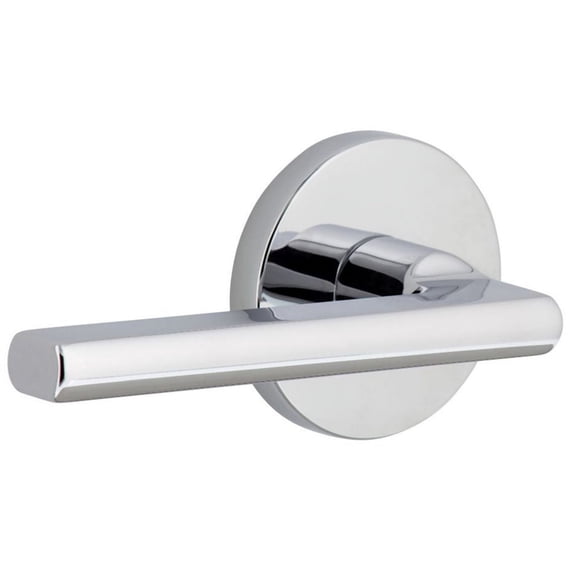

Viaggio 623507 Circolo Left Handed Solid Brass Privacy Door Lever Set - Chrome

The Circolo Rosette’s soft geometry offers a stunning look with cultured elegance. The bold curves and circular shape add class to contemporary settings. Captivate attention with the Milano lever’s fusion of subtly sculpted arcs and planar surfaces. All Viaggio products are made with longevity and durability in mind so they can be enjoyed for generations to come.

Privacy: Privacy door hardware features a locking mechanism on the interior for use on bedroom and bathroom doors where locking is needed. The exterior side features a small pin hole to unlock the door hardware from the outside.

Features:

• Lifetime mechanical warranty
• Made from solid forged brass and precision polished for superior quality
• Concealed screw mechanism (CSM) for clean, uncomplicated style with no visible screws
• Includes a complete set for both sides of one door
• Easy to install and works with modern pre-drilled doors

Includes:

• Knob and plate assemblies
• One (1) strike plate with two (2) wood screws
• One (1) square corner faceplate
• One (1) latch
• One (1) plastic anti-rotation block
• One (1) CSM sub plate
• One (1) CSM spindle
• One (1) plastic brass bushing
• One (1) bushing tool
• One (1) nylon washer
• One (1) hex wrench
• One (1) privacy release key
• One (1) privacy pin and extender
• Mounting Hardware

Specifications:

• Backset: 2-3/4"
• Cross Bore: 2-1/8"
• Edge Bore: 1"
• Door Thickness: 1-3/8" to 1-3/4"
• Handing: Left
• Handle Length: 5"
• Handle Projection: 2-1/16"
• Trim Width: 2-1/2"
• Trim Height: 2-1/2"
• Product Weight: 4.3 lb.
• Latch Faceplate: Square Corner
