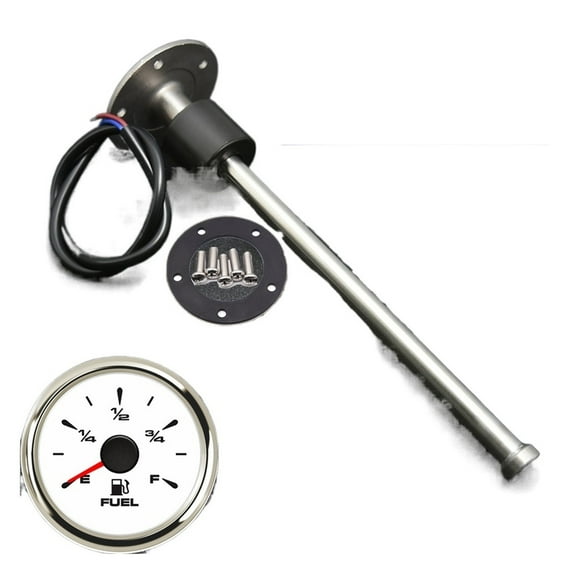

100-800MM Fuel Level Sensor 0-190ohm Fuel Level Gauge 52MM Gauge 7 Color Backlight Oil Level Sender Unit For Yacht ,Easy Setup

7 Color Backlight Waterproof Fuel Level Gauge 0-190ohm Oil Tank Level Indicator Meter with Fuel Level Sensor 100MM-500MM

Waterproof Fuel Level Gauge with 7 Color Backlight 0-190ohm Fuel Level Sensor 100mm-500mm Oil Liquid Tank Level Sensors for Boat

Feature:

- IP67 waterproof and dustproof grade.

- With curved glass (with anti-fogging function).

- Use moving-magnet principle to drive the needle, featuring good endurance and anti-vibration.

- Be suitable for all kinds of water level sensors with same signal, and display liquid level of the water tank.

- With ultra-wide working voltage design( long-term operating voltage: 9-32V, Maximum up to: 36V ( 1 min)).

- Stepper motors used for full range of stepping gauges, great feature with its less power consumption, longer life, higher precision, etc.

Specification:

- Indicating Range: 0-100%

- Name: Water Level Gauge

- Fixing dimension: 52mm or 2-1/16"

- Operating Voltage: 9-32V /fit 12V-24V

- Materials: stainless steel+nickel-plated plastic

- Input signal:0~190ohm

Attention:

- Empty oil level : 0 ohm

- Full oil level : 190 ohm

- When the oil / water level is empty , there will be a space of 3-15mm between the sensor float and the bottom of the sensor. This is a safe distance, and the sensor can work normally,Thank you~

- When the oil / water level is full, there will be a space of 3-15mm between the sensor float and the top of the sensor. This is a safe distance, and the sensor can work normally, Thank you~

Package:

1 x fuel level sensor

+1xgauge
