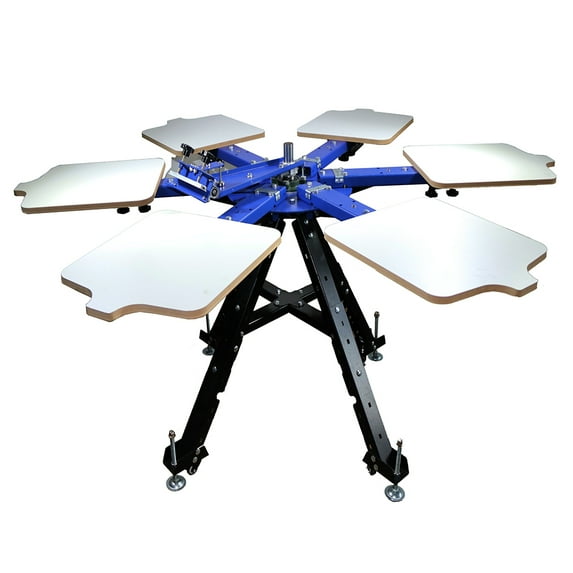

PreAsion 6 Station 1 Color Single Rotating Screen Printing Press Adjustable Height Silk Printer

Description:
This machine is used for one color T-shirt or cloth products. Equipped with six independent printing table,higher printing efficiency.
The machina adopts adjustable height rack,The height of the rack can be adjusted according to the operator's heignt and working habits: The adjustment range from the ground is 58-109cm;
The operator can work by standing or sitting on a chair according to the height of therack.


Function Introduction：
1:Six plates can be arbitrarily rotated 360 degrees:Can be printed at any station.
2:The plate rotates to the printing statton and is postioned by the wave bead.
3:Adopts magnet adsorption to the control the screen frame lifting up balance.
4:Screen frame chuck width is 240mm，height is 68mm,suitable for all kinds of frame height within 50mm .
5:This shelf can adjust five height ranges according to height requirements.
6:The diameter of the lowest adjusting height of this shelf is 95cm,and the diameter of the highest adjusting height is 135cm.


Specification：
Type: 1 Color 6 Station
Width of the screen frame clamp: 9.4inch
Height of the screen frame clamp: 2.7inch
Pallet size: 22×18×0.7(thickness)inch
Suitable for screen frame thickness: 2inch
Stand height range: 23-29inch, 27-32inch, 30-36inch, 33-39inch and 37-43inch


Item Included:006180
PreAsion 6 Station 1 Color Single Rotating Screen Printing Press Adjustable Height Silk Printer
