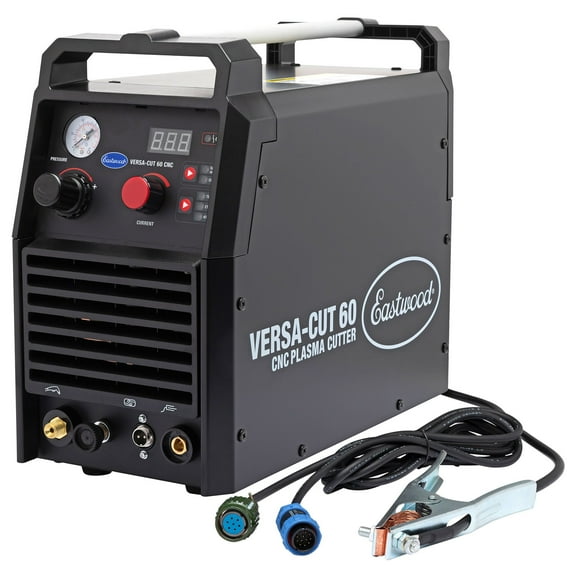

Eastwood Versa- Cut 60 CNC Metal Cutting Plasma Cutter Machine

The Eastwood Versa-Cut 60 CNC Plasma Cutter is the best solution for making clean, fast cuts through steel, stainless or aluminum as thin as 24-gauge, or as thick as 7/8” using a hand torch while adding CNC operation features and functionality. Compared to our standard Versa-Cut 60 with high frequency start, the Versa-Cut 60 CNC features a blowback pilot arc to minimize the possibility of interference. Additionally, the rear mounted 12-pin plug is ideal for hardwiring dedicated CNC plasma table controls with or without a height controller. Dual voltage capability allows the versatility to plasma cut with 120V household outlets and receptacles, or full 240V power when available. Pair with optional Machine Torch (#66723) and HD Consumables Kit (#73829) for the best experience CNC plasma cutting thick plate.

Contents

(1) Versa-Cut 60 CNC Plasma Cutter
(1) Ground Clamp with 10' (3m) Cable
(1) Adapter Cord, 24" (0.6m)
(1) Plasma Cutter to CNC Table Cable 10' (3m)

Torch is not included.

Specifications

Input Voltage: 240V±10% VAC, 50/60 Hz, 1 Phase / 120V±10% VAC, 50/60 Hz, 1 Phase
No Load Voltage: 339V
Rated Input Current (I1max / I1eff): (240V) 44.5A / 34.5A - (120V) 39.4A / 30.5A
Output Current Adjustment: (240V) 20A (88V) - 60A (104V) - (120V) 20A (88V) - 30A (92V)
Rated Duty Cycle: (240V) 60% @ 60A, 100% @ 46A - (120V) 60% @ 30A, 100% @ 23A
Starting Method: Blowback (Low frequency)
Air Requirements: 5 - 7 CFM @ 60 psi
Maximum Material Thickness – Hand Cut: 7/8"
Maximum Material Thickness – CNC Table: 3/8" clean cut (1/2" severance cut)
Overall Dimensions: 17.01" x 8.46" x 14.68" (432 x 215 x 373mm)
Weight 30.6 lbs. (13.9kg)
