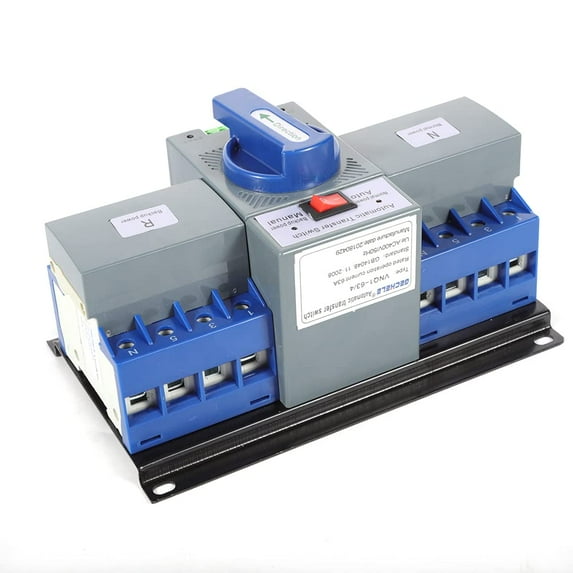

63A 4P Dual Power Automatic Transfer Switch, Mini Dual Power Automatic Transfer Switch Circuit Breaker High Sensitive Response Dual Electronic Power Circuit Breaker
Key item features
- ✷【Manual Automatic Integration】It is equipped with manual and automatic switching buttons. The color-giving toggle switch is set to the left position for automatic mode and to the right position for manual mode, thus meeting different needs.
- ✷【Good Environmental Adaptability】It has good environmental adaptability. Whether it is high or low temperature will not easily affect its normal operation.
- ✷【All-in-one Design】It uses a building block structure to create an all-in-one small size, saving the space required for installation.It uses excellent devices to minimize the noise generated during use, so you do not need to worry about its operation will disturb your normal rest.
- ✷【Excellent Performance】It has the ability to strengthen the temperature and humidity of the circuit board's environmental adaptability and anti-inter-ference ability. It effectively avoids the mis-operation and switching failure of the product in the complex and harsh environment.
- ✷【High-quality Service】We also provide you with high-quality pre-sales and after-sales services for free. If you have any problems, please feel free to contact us and we will try our best to help you.
Specs
- Volts110 V
- BrandDwellnix
- Free shipping
Free 30-day returns
How do you want your item?
About this item
Product details
Description
Still worried about power outages affecting your daily life? Why don't you take a look at this dual-power automatic transfer switch of ours? It is made of sturdy plastic and copper with strong conductivity to ensure your long-term use. The fast changeover (about 2S) between normal and backup power makes your life more convenient and comfortable without worrying about power outages.
Details
Mounting Holes: 4 mounting holes on the back panel make it easy for you to fasten it to the wall quickly.
Rounded Corners: The burr-free rounded design can better care for your skin and add to the overall beauty of the product.
Terminal Block: Equipped with copper terminals, it has better conductivity.
Application
It can be used for single-phase AC110V power circuits as well as bi-directional power sources such as commercial generators, solar power, and batteries. If it is a DC or low voltage power supply, the inverter needs to be connected to a dual power source after reversing to AC 110V, such as a meter, street light, inverter, UPS, etc.
Specification
Assembly Required: No
Style: Modern
Shape: Rectangular
Color: Blue, Gray
Material: Plastic, Pure Copper, Copper
Rated Current: 63A
Bore: M6 (6mm/0.24in)
ATS Level: CB Level
Used Level: AC-33iB
Conversion Mode: Automatic Transfer and Self-Recovery
Display Function: Indicator Light Display
Installation Type: Wall Mount (Horizontal or Vertical)
Operating Voltage: AC110V
Rated Voltage: AC240V
Line Current: 6A-63A
Working Frequency: 50HZ/60HZ
Insulation Voltage: AC690V
Conversion Time: About 2S
Contact Type: Edged Output Contacts
Circuit Type: Bidirectional
Actuator Type: Ring Cross
Number of Poles: 4
Mounting Hole Distance: 20.6cm/8.11 in
Base Width: 12.5cm/ 4.92 in
Product Size: 22.4*13.5*10cm/8.82*5.31*3.94in
Package Size: 23*14.5*13cm/9.06*5.71*5.12in
Gross Weight: 1.85kg/4.08lbs
Net Weight: 1.76kg/3.88lbs
Package Included
1* Dual Power Automatic Transfer Switch
1* English Manual
Notes
1. Please check the style and size before purchasing.
2. Please read the instruction manual completely before installation and use, and pay particular attention to the safety instructions included.
3. Please note that the power supply is cut off when the voltage is switched in both directions.
4. Please note that the switch cannot turn the generator on or off.
5. When both normal and standby power are supplied at the same time, the switch will give priority to the normal power.
6. Please turn the handle in the direction of the arrow. Please do not use the handle in automatic control.
7. Please do not install the switch with leakage protection on the upper end to avoid tripping. If necessary, install it on the lower end.
8. This product cannot be mounted on a rail. General household distribution boxes are too small for concealed distribution boxes.
9. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement and make sure you do not mind before ordering.
