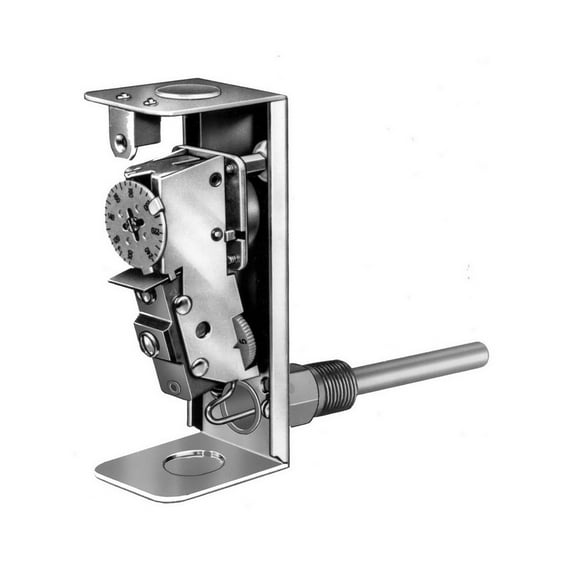

(Price/Each)Honeywell L4006B1163 Reverse Acting Aquatsat(100-240F)

Price is for each.

Manufacturer Part Number: L4006B1163

HONL4006B1163 Reverse Acting Aquatsat(100-240F)

Part Description:

• Aquastat Controller
• Type 3/8 Inch Diameter x 2-7/8 Inch Length Copper Bulb, 3 Inch Length Capillary, Direct Horizontal/Vertical Well Immersion, Circulator
• Temperature Range 100 to 240 Deg F
• Maximum Temperature Rating 150 Deg F
• Contact Rating 8 Amp at 120 Volt AC/5.1 Amp at 240 Volt AC (Full Load), 48 Amp at 120 Volt AC/30.6 Amp at 240 Volt AC (Locked Rotor), 0.25 Amp at 0.25 to 12 Volt DC (Millivolt)
• Contact Configuration SPST, Contact Break on Temperature Rise
• Connection Type 3/4 Inch Conduit, Screw Terminal
• Application Boiler, Storage Tank
• Approval UL, CSA, AGA
• Overall Dimension 2 Inch Width x 2-1/8 Inch Depth x 5-5/8 Inch Height
• Differential Temperature Rating 5 to 30 Deg F Adjustable
• Pressure Rating 200 PSI (Capillary Bulb), 255 PSI (Immersion Well)
• Sensing Bulb Fill Liquid Toluene or Silicone Oil

Features / Benefits

• Totally Enclosed Micro Switch Snap Acting Switches Operate on Temperature Rise to Set Point
• Visible Control Point Scale and External Adjustment Screw Permit Easy Setting
• Direct or Well Immersion of the Sensing Element
• Horizontal or Vertical Insertion of the Sensing Element
• Remote Bulb Model May be Used to Sense Air Temperature in Ducts and in Outside Air Sensing Application
