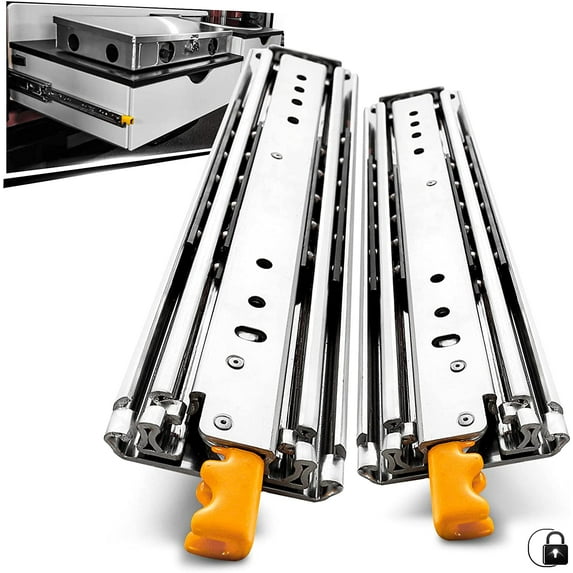

AOLISHENG Heavy Duty Drawer Slide 28'' with Lock Industrial Ball Bearing Slide Rail 450lb Load 1Pair
AOLISHENG Heavy Duty Drawer Slide 28'' with Lock Industrial Ball Bearing Slide Rail 450lb Load 1Pair
Hero image 0 of AOLISHENG Heavy Duty Drawer Slide 28'' with Lock Industrial Ball Bearing Slide Rail 450lb Load 1Pair, 0 of 7
AOLISHENG

AOLISHENG Heavy Duty Drawer Slide 28'' with Lock Industrial Ball Bearing Slide Rail 450lb Load 1Pair

(No ratings yet)
AOLISHENG Heavy Duty Drawer Slide 28'' with Lock Industrial Ball Bearing Slide Rail 450lb Load 1PairAOLISHENG Heavy Duty Drawer Slide 28 with Lock Industrial Ball Bearing Slide Rail 450lb Load 1PairAOLISHENG Heavy Duty Drawer Slide 52 with Lock Industrial Ball Bearing Slide Rail 250lb Load 1PairAOLISHENG Heavy Duty Drawer Slides 38 inch with Lock 420 lb Load Capacity Side Mount 1 PairAOLISHENG Heavy Duty Drawer Slide 40 with Lock Industrial Ball Bearing Slide Rail 410lb Load 1PairAOLISHENG Heavy Duty Drawer Slides 60 inch with Lock 250lb Load Capacity Side Mount 1 PairAOLISHENG Heavy Duty Drawer Slide 30 with Lock Industrial Ball Bearing Slide Rail 445lb Load 1PairAOLISHENG Heavy Duty Drawer Slide 34 with Lock Industrial Ball Bearing Slide Rail 430lb Load 1Pair

Key item features

  • 【Max load capacity 450lb, 30-year service life】 The three-section rails are all made of thickened Q235 steel plate with a thickness of 2.5mm, and are made of high-strength, high-density excellent cold-rolled steel. It can support heavy-duty storage without deformation, and the bottom is equipped with a limited rubber pad, which is made of ABS plastic, with good wear resistance and good crash resistance. After the test, the number of opening and closing times has reached more than 200,000 times.
  • 【Full extension slide rail, double anti-rust】Full extension heavy duty drawer slide supports access to the entire space, and the drawer can be fully pulled out for convenient storage of items. The surface of the slide rail is treated with galvanized blue sealing process, which isolates the rail from direct contact with air and water, and increases anti-oxidation and anti-corrosion. Ball bearings inside the slide rails provide smoother sliding performance when closing and opening the drawer.
  • 【Lock drawer slides】Press the yellow handles on both sides at the same time to lock and unlock the drawers, they can be locked when fully closed and fully opened to prevent sliding. Locking slides can be used in shelves, cabinets, industrial drawers, RVs, trucks, vending machines, etc.
  • 【Installation requirements】 Size: 12"(304.8mm), fully extension length: 24"(609.6mm), installation clearance: left: 0.77"（19.6mm), right: 0.77"（19.6mm) Approximate length of yellow lock :1.18"(30mm). You can choose the size of the rail according to the depth of the drawer. The length of the rail should be less than or equal to the drawer. You can refer to the picture above.
Specification:
  • Material: Cold-Rolled Steel
  • Installation Method: Side Mount
  • Load Capacity: 450 lbs/205 kg
  • Installation Clearance: 19.2+0.3mm
  • Black Slide Style: 3 Folds Full Extension, With Lock
  • Plate Thickness: Outer Slider (2.5mm) / Middle Slider (2.5mm) / Inner Slider (2.5mm)
  • Scope of Application:Shelves, cabinets, industrial drawers, RVs, trucks, vending machines, etc.
Notes On Slide Rails:
  • In order to ensure the safety of users, heavy-duty slide rails cannot be disassembled.
  • The locking mechanism can only take effect when the drawer is fully closed or fully opened.
  • The product does not include screws because of different usage scenarios. You can purchase M6 screws by yourself.
Package:
  • 1 x Pair of drawer slides
  • The mounting brackets and screws are not included
  • Tough quality assurance
