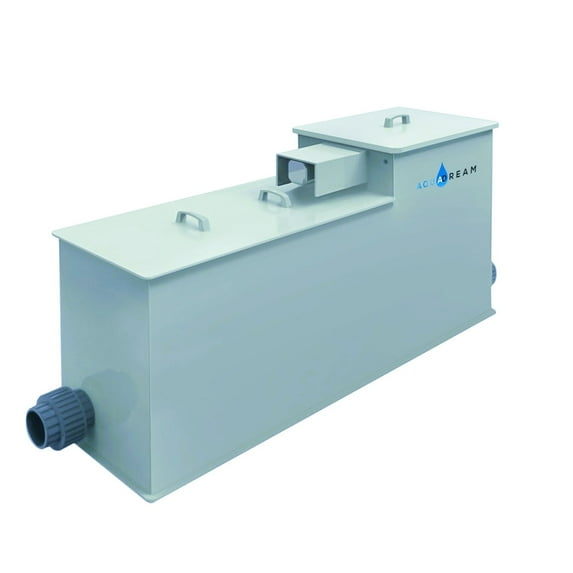

Macro Drum Pond Filter with Filter Media, Integrated Filtration Equipment, 10 Tons 2600 GPH Efficient Filter Media

Product Description: Working principle: Automatic drum microfilter is made of non-toxic and corrosion resistant food grade PP material. It is mainly composed of five parts: box assembly, drum assembly, backcleaning system, electric control box system and transmission system. It can handle water flow ≤10m³/h. The equipment uses food grade environmental protection 316 stainless steel filter as the medium to remove suspended matter, and separates the suspended matter in water (≥50 μm). When the water containing suspended particles enters the drum through the inlet, the suspended matter is intercepted by the filter screen, and the filtered water flows into the next treatment process or pool through the outlet. The equipment adopts automatic liquid level control, a water level position control point is set in the box. In the process of operation, when the suspended matter in the drum accumulates to a certain amount, it will cause the water penetration of the filter screen to decrease, resulting in the water level of the box outside the drum to rise. At this point, outside the roller body water level rises to the setting position of water level control points, the cleaning system start the pump and drive system, the backwash water pump and drive system start at the same time, the roller rotation and clean the nozzle was carried out on the rotating drum filter continuous high pressure cleaning, washing sewage to the collecting groove, direct discharge; At this time, when the cleaning reaches the time set by the time relay, the cleaning pump and transmission system stop running. Equipped with intelligent turbine inverter pump energy-saving, environmental protection, strong filtration cycle. Specifications: -  Product size of BTS-10 is 1713*461*806mm (67.44" x 18.14" x 31.73") -  Water flow rate: 2,690 GPH -  Water intake DN80(3 inches); outlet DN80(3 inches); sewage outlet DN40(1.5 inches) -  Motor power 60W; pump power A80/96W -  Biochemical warehouse size 376*295*363mm(14.81"x 11.61"x 14.29").
