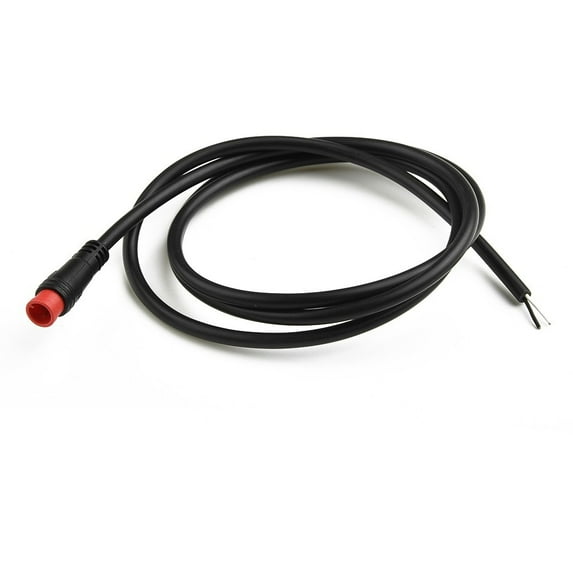

YAAQII for Julet Basic Connector 2-Pin Male Waterproof Cable for Ebike Display Electric Bicycle Components ABS Material Temperature Resistant -40°C to 85°C

Features:

* brand new and high quality

*Made of high quality material, and practical to use

*This is THE best option for having water tight connections on your e-bike. Mostly found on the for Bafang range of electric bike equipment, these connectors come in a wide range of available pins, to help you make your wiring lom

*Each male or female connector comes with 1m of cable length, moulded connector on end, bare cable on the other.

*Be sure to choose the male or female end that you require, or both if you need the pair.

*These Higo connectors are rated at 2A for each pin/core and have colour coded ends:

*Julet Connector

RED= 2 PIN

YELLOW= 3 PIN

BLUE= 4 PIN

GREEN= 5 PIN

PURPLE or BLACK= 6 PIN

BLACK= 8 PIN

Specifications:

*Material: ABS

*Temperature Range:-40degree Celsius～+85degree Celsius

*DIMENSIONS:

2-pin to 6-pin cables:

Wire diameter: 3.7mm

Wire length: 900mm

diameter: 9mm

length: 35mm

8-pin cable:

Wire diameter: 6mm

Wire length: 1000mm(1 metre)

diameter: 12mm

length: 38mm

Pin Out

Looking directly at the  with the indent at the top:

Looking directly at the  with the indent/gap at the top:

*Optional types:2-Pin Female,3-Pin Female,4-Pin Female,5-Pin Female,6-Pin Female,2-Pin Male,3-Pin Male,4-Pin Male,5-Pin Male,6-Pin Male

Package Contents:

1*Modified accessories

Note:

1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.

2. Please allow slight manual measurement deviation for the data.
