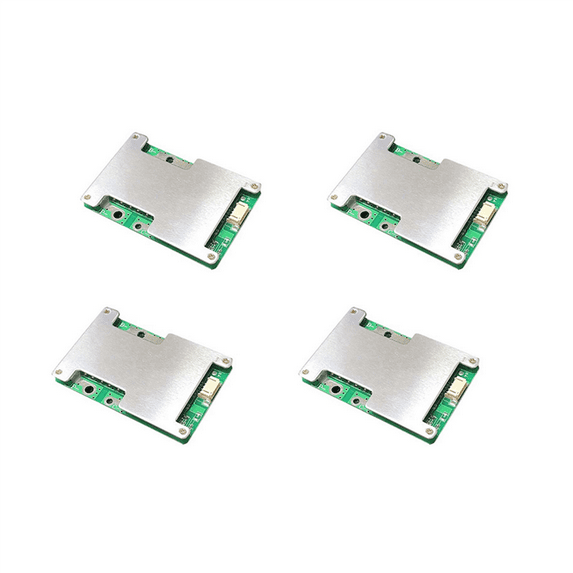

4Pcs 4S 12V 100A LiFePo4 Lithium Iron Phosphate Battery Protection Circuit Board with Balanced Charging

Short circuit protection
Overcharge protection
Over-discharge protection
Overcurrent protection

Discharge:
Continuous discharge current: 0.1~100A(max)
Instantaneous discharge current: 150A
Charging:
Charging Voltage(Standard): 15V
Charging current: 0.1~10A(max)
Overcharge Protection:
Overcharge detection voltage: 3.75±0.025V
Overcharge protection delay: 0.3S
Overcharge release voltage: 3.60±0.05V
Energy Balance:
Energy balance detection voltage: 3.60±0.025V
Energy balance release voltage: 3.60±0.025V
Energy balance current: 42±5mA
Over-discharge Protection:
Over-discharge detection voltage: 2.0±0.1V
Over-discharge detection delay: 0.1S
Over-discharge release voltage: 2.3±0.1V
Overcurrent Protection:
Overcurrent detection voltage: 150mV
Overcurrent detection delay: 9mS
Overcurrent Protection current: 200±10A
Short circuit Protection:
Short circuit detection delay: 250μS
Short circuit Protection release condition: Disconnect the load
Main circuit conduction internal resistance:≤15mΩ
Self-consumption current:≤20uA
Operating temperature:-30℃~80℃
Wiring:
Please test three series of battery voltage balance then cascade
Don't need connect B+
C-: Charging -
P-: Just can as discharge -
color:As shown
Material:PC+Metal
size:56 x 86 x 9mm

Package Contents:
4 x Lithium Battery Charger Protection Board

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
