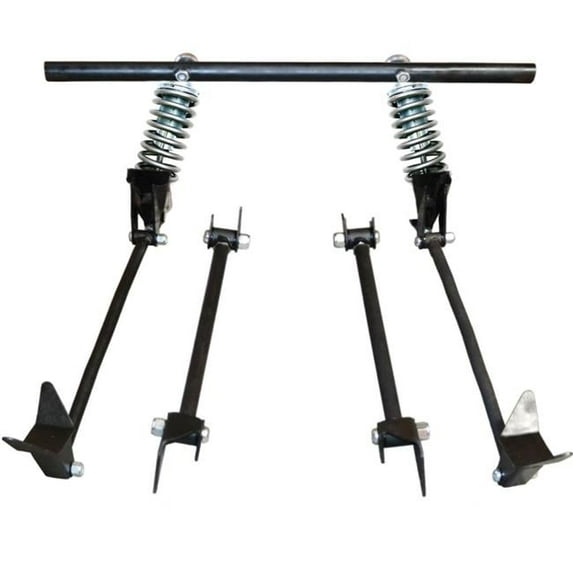

Helix Suspension Brakes & Steering 685790 Triangulated Rear 4-Link Assembly with 39 Coilovers for 1939 Ford Phaeton

Triangulated Rear 4-link w/ Coilovers 39 1939 Ford Phaeton Installing a four link kit on your 39 1939 Ford Phaeton just got easy with this deluxe kit that includes the four link bars, brackets, upper shock mount, coilover shocks, and springs! This Triangulated 4-Link Kit is stronger than the rest, with the same .156 wall tubing that is the standard in drag racing applications. Adjustable 4-link features extra long 28 inch main bars and 18 inch secondary bars to provide you with the maximum in suspension travel and adjustability. Sleeved bushings an extended life and reduced wear during operation. Completely MIG welded for maximum strength. All mounts are cut from 3/16"plate. Special infinitely adjustable CNC machined threaded rod ends are thicker than usual and thread over 2.5 inches into the 4-link tubes for both strength and adjustability. Fully plated Grade 8 mounting hardware included. Triangulated Four Link Kit with Coilover Shocks And Weld In Upper Crossmember Kit for 39 1939 Ford Phaeton . With different spring weights for heavier vehicles. Stay ahead of the pack with Helixsuspension.

• Triangulated Rear 4-Link Assembly with 39 Coilovers for 1939 Ford Phaeton
• Expertly crafted from superior materials
• Provide superior durability

• 1939 Ford Phaeton

• Main Bar: 28" (711mm) Long
• Secondary Bar: 18" (457mm) Long
• Bar Wall Thickness: 4.1mm
• Heavy Duty Bushings: YES
• Coil Over Brackets Positions: 3
• Coil Over Brackets: YES
• Adjustable: YES
• Bar Thickness: 25 mm
• Brackets Thickness: 5mm
• Brackets: Included
• Install Hardware: YES
• Number Of Bars: 4
• Bushing Included: YES
• Shock Hardware: YES
• Hardware: YES
• Axle: 3" & 2 3/4"
• Shocks Included: Yes
• Spring Rate: 200-240 progressive
• Upper Crossmember: Included
• Style: Coilover Shock
• Adjustable: Yes
• Material: Hardened Steel
• Charged: Nitrogen
• Length: 273 mm
• Upper Mounting: Loop
• Lower Mount: Loop
• Valving: Performance Street
• Weight: 55 lbs
