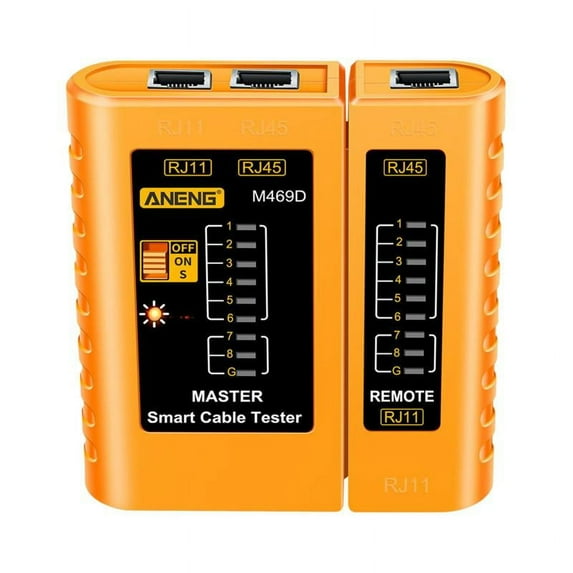

Ethernet Cable Tester 5E 6 Wire Test Tool RJ1145 RJ1145 Tester Check Continuity Wire for Network LAN Networking Wire

Description:

Designed for test the wire circuit state of network cable, telephone cable, such as open, short, crossing, etc. Ethernet cables and RJ 45/RJ11 cables. With this network cable tester, you can judge, short circuit and open circuit.
This model adopt automatic scan model, which can rapidly get a test result. RJ 45 Network Cable Tester tests double-twisted cables 1, 2, 3, 4, 5, 6, 7, 8 and Ground.
Compact and light weight network cable tester, useful for home and outside use.The tester has a detachable section making it perfect for testing cable runs in different locations.
Following are abnormal connections: If cable, for example cable is open circuited, the two lights of the main tseter and remote tester will not turn on. If several cables are not connected, several lights will not turn on respectively. If less than two cables are conntected, none of the lights is on. If two ends of a cable is disordered, for example and NO. 4, then displays Main tester: 1-2-3-4-5-6-7-8-G // Remote tester: 1-4-3-2-5-6-7-8-G
If two cables are short circuited, neither of the corresponding lights is on of the remote tester while main tester unchanged. If three cables, including three, are short circuited, none of the corresponding liaghts is on. If test patch panels or wall outlels, two cables which can match each other (RJ 45) will be connected to the tester. If test cables of the same, BNC turns on when the .

Specification:

Color: Black,Yellow (Optional)
Type: Network cable tester
Model: M469D
Material: ABS
Battery Type: 9V 6F22
Main tester: 1-2-3-4-5-6-7-8-G
Remote tester: 1-2-3-4-5-6-7-8-G RJ 45/ 1-2-3-4-5-6 RJ11

Size Chart:

103x97mm/4.06x3.82inch

Package Includes:

1*Cable Lan Tester
