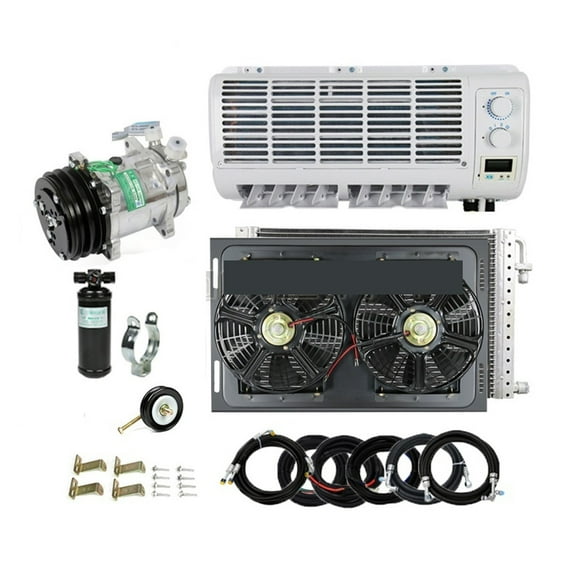

Universal Wall-mounted A/C Air Conditioner ,12V24V With Double Fan For Heavy Duty Truck Van Tractor Excavator Engineering Vehicle ,Efficient Cooling

Specifications:

Name: car air conditioning conversion assembly (single cooling)

Type: 500 type 26 tubes hanging machine standard 24V/12V

Compressor parameters:

Power supply: DC12V, DC24V

Cooling capacity: 6600W / H

500 type hanging machine size: 53 * 24 * 15cm

Electronic fan parameters:

Maximum power: 80W * 2

Wind cover material: spray paint iron frame

Size: 57.5 * 36cm

Wiring harness and air conditioning duct specifications:

Battery power line to the terminal column about 2.5 m,

Inner machine evaporator to the terminal column 3.5 m.

Electronic fan line to the terminal about 0.3 meters

3 points of air conditioning pipe 3.5 meters and 0.5 meters,

4 points of air conditioning pipe 3 meters,

5 points of air conditioning pipe 3.5 meters (pipeline have been pressed connector)

Notice:

1. This compressor is belt type, the belt is not included, you need to choose the corresponding compressor according to the width of the belt.(Double A pulley size is suitable for belt width 13mm ,Single B pulley size is suitable for belt width of 17mm)

2.Products do not include refrigerant and compressor refrigeration oil.

3.The product can not be used in the harvester, if you need to use it for the harvester, please contact online customer service.

4.Due to manual measurement, the product size has an error of 1-2cm, thank you!
