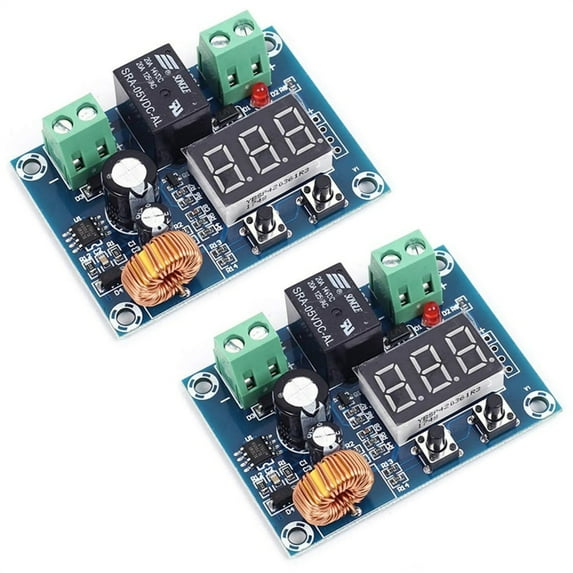

Scheam 2 Pack DC Voltage Protection Module,12-36V Low Voltage Digital Protector,Disconnect Switch Over Discharge Protection Module
Scheam 2 Pack DC Voltage Protection Module,12-36V Low Voltage Digital Protector,Disconnect Switch Over Discharge Protection Module
Hero image 0 of Scheam 2 Pack DC Voltage Protection Module,12-36V Low Voltage Digital Protector,Disconnect Switch Over Discharge Protection Module, 0 of 7
Scheam

Scheam 2 Pack DC Voltage Protection Module,12-36V Low Voltage Digital Protector,Disconnect Switch Over Discharge Protection Module

(No ratings yet)

Key item features

  • OVER-DISCHARGE PROTECTION: This battery controller offers extensive flexibility in discharging modes and parameter settings. Users can configure parameters to automatically disconnect the battery when it reaches a preset voltage, thereby preventing over-discharge and extending battery life (Note:The relay does not contain a power cut-off switch,remember to cut off the power supply after disconnection, otherwise the module will continue to use the battery until the voltage is 0.). The customizable parameters enable users to tailor their power management system to specific requirements and preferences
  • SIMPLE OPERATION: To restore factory settings, power off the device, press and hold both buttons simultaneously, and then power on. The screen will display "888," indicating that the factory settings have been restored. The default protection value is set at 12V with a difference value of 2V. The difference value represents the voltage range between disconnecting and reconnecting the battery. User settings are retained in the event of an unexpected power loss, ensuring critical data is preserved and allowing seamless resumption of operations
  • SCOPE OF APPLICATION: This device is a voltage controller that employs a relay to switch the output on and off. The relay functions solely as a switch and does not alter the voltage. It is a protective switching module and does not include batteries. Compatible batteries include lead-acid, lithium-ion, and solar panel batteries. This module is not suitable for battery packs
  • PARAMETERS: Board Size: 57 x 42 x 19 mm (2.24 x 1.65 x 0.75 inches) LxWxH; Input Voltage: DC 12-36V; Accuracy: ±0.1V; Power Consumption: <1.5W; Maximum Current before Breaker Trips: 20A
  • NOTE: Due to the size constraints of the PCB board, this module features a miniaturized relay and thin circuit lines. Therefore, the current during actual use should not exceed 8A to prevent damage to the relay contacts. The maximum current is 10A when the voltage is below 12V, and it should be less than 8A when the voltage exceeds 12V
Current price is $10.99
Price when purchased online
  • Free shipping
  • Free 30-day returns

How do you want your item?

How do you want your item?
Ships to
Arrives between May 27 - Jun 3
|
Sold and shipped by Meilixing Co. Ltd.
3.844574780058651 stars out of 5, based on 341 seller reviews(3.8)
Report an issue with this seller
Free 30-day returns

About this item

Product details

Specifications

Warranty

Customer ratings & reviews

0 ratings|0 reviews
This item does not have any reviews yet
