Hero image 0 of Burndy Ka2U 2Str Cu/Al Mech Lug, 0 of 2

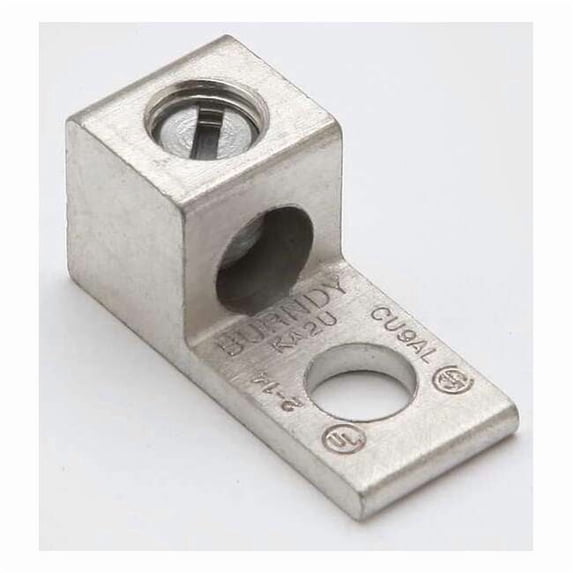

Burndy Ka2U 2Str Cu/Al Mech Lug
(No ratings yet)
Key item features
- Application:For Aluminum And Copper Conductors
- Body Material:Aluminum
- Certification - CSA Approved:No
- Certification - UL Listed Direct Burial:No
- Compatible with Product Type:Aluminum Cable, Copper Cable
- Head Style:Slotted
- Hole Diameter:0.27 in
- Industry Standard(s):UL468A-468B
- Installation Torque Recommended in-lb:50 LBS/in
- Item:Mechanical Connector
- Length (Straight Wireway):1.16 in
- Length:1.16 in
- Material - Hardware:Steel
- Material:Tin-Plated Aluminum
- Max. Conductor Size:2 AWG Stranded
- Maximum Operating Temperature:194 Degrees F
- Maximum Voltage:600 V
- Min. Conductor Size:14 AWG Stranded
- No. of Conductors:1
- Number of Conductors:1
- Physical Attribute - Number of Holes:1
- Physical Attribute - Number of Screws:1
- Physical Attribute - Screw Type:Slot
- Plated:Y
- Plating Type:Tin
- Rating - Minimum Voltage:600
- Special Features:Providing Low Contact Resistance
- Tongue Length:0.63 in
- Tongue Thickness:0.1 in
- Tongue Width:0.51 in
- Torque:50 in-lb
- Type:Bolted Lugs & Terminals
- UL Listed:Yes
- Wire Size Ranges:14 AWG - 2 AWG
Specs
- Wire connector typeMechanical Connector
- BrandBURNDY
- Pieces1
- Has nrtl listing certificationN
Current price is USDNow $7.89
You save $1.04
was $8.93$8.93
You save$1.04
Price when purchased online
- Free shipping
Free 30-day returns
How do you want your item?
Ships to
Arrives by Fri, May 15
|
Sold and shipped by WIDESTEP
4.3971291866028706 stars out of 5, based on 209 seller reviews(4.4)209 seller reviews
Free 30-day returns
More seller options (1)
Starting from $8.93
About this item
Product details
Mechanical Connector, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 14 AWG, For Stranded Copper Wire Size - Maximum 2 AWG, For Stud Size 1/4 in, Head Style Slotted, Number of Holes 1, Hole Diameter 0.27 in, Hole Spacing Not Applicable, Body Material Aluminum, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Number of Terminations 1, Tongue Length 0.63 in, Tongue Width 0.51 in, Tongue Thickness 0.1 in
- Application:For Aluminum And Copper Conductors
- Body Material:Aluminum
- Certification - CSA Approved:No
- Certification - UL Listed Direct Burial:No
- Compatible with Product Type:Aluminum Cable, Copper Cable
- Head Style:Slotted
- Hole Diameter:0.27 in
- Industry Standard(s):UL468A-468B
- Installation Torque Recommended in-lb:50 LBS/in
- Item:Mechanical Connector
- Length (Straight Wireway):1.16 in
- Length:1.16 in
- Material - Hardware:Steel
- Material:Tin-Plated Aluminum
- Max. Conductor Size:2 AWG Stranded
- Maximum Operating Temperature:194 Degrees F
- Maximum Voltage:600 V
- Min. Conductor Size:14 AWG Stranded
- No. of Conductors:1
- Number of Conductors:1
- Physical Attribute - Number of Holes:1
- Physical Attribute - Number of Screws:1
- Physical Attribute - Screw Type:Slot
- Plated:Y
- Plating Type:Tin
- Rating - Minimum Voltage:600
- Special Features:Providing Low Contact Resistance
- Tongue Length:0.63 in
- Tongue Thickness:0.1 in
- Tongue Width:0.51 in
- Torque:50 in-lb
- Type:Bolted Lugs & Terminals
- UL Listed:Yes
- Wire Size Ranges:14 AWG - 2 AWG
info:
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it. Â
Specifications
Wire connector type
Mechanical Connector
Brand
BURNDY
Pieces
1
Has nrtl listing certification
N
