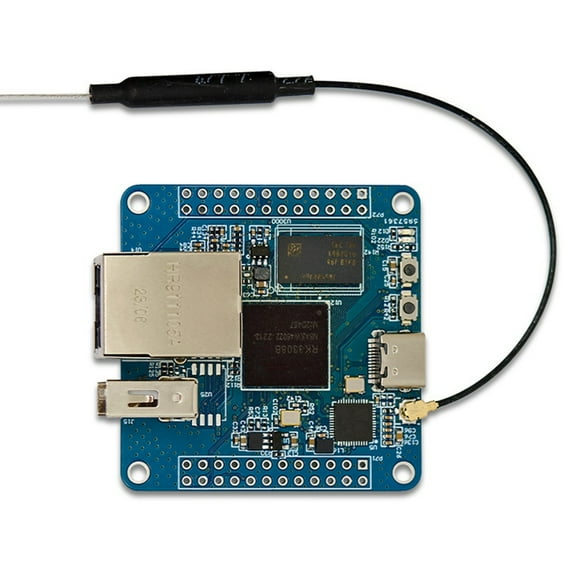

RK3308B Quad-Core CPU Development Board DDR3-2Gbit IoT Development Board,Support Ethernet Port and Wifi

Type-C port: power supply port + ADBO
UART serial port: connect USB to TTL module for serial port debugging (pins 2-4-6-8 correspond to: 5V-GND-TX-RX)
Reset button: reset button
maskrom button: by default, SDNAND starts before TF card. Pressing the maskrom button can ignore SD NAND flash memory when ROCK PiS starts (need to prepare Flash and Q15 transistors for use, see schematic diagram 5_TF_USB for details)
Wireless transceiver chip: RTL8723DS ETH network port: 100M network port
SPI_Flash memory: used for SPI NAND FLASH image burning (need to prepare)
DDR3 memory: SDRAM_K4B2G1646E
Colour:As Shown
Material:Plastic

Package Contents:
1 * Development Board

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
