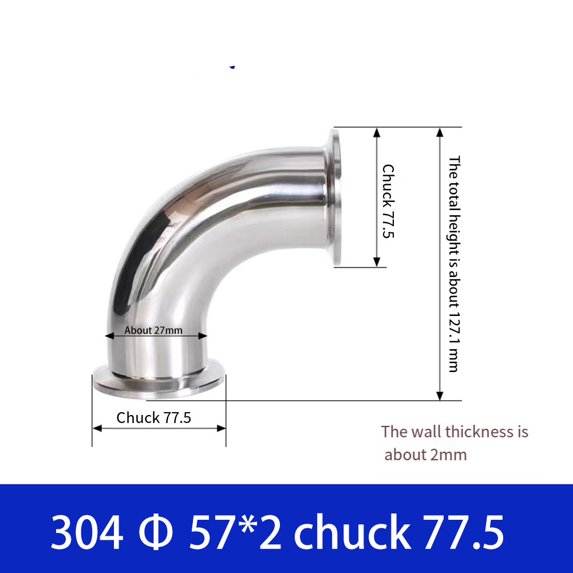

Tri Clamp Compatible Sanitary Elbow Fitting at a Right Angle Connection

Features:
* Elbow 90 degree clamps for connecting two pipes or tubes at an angle.
* Suitable for 1.5 inch, 2 inch, 3 inch ferrule tri-clamps.
* 304 stainless steel quick-release elbow sanitary clamp disc type quick connect pipe 90 degree elbow fittings
* Sanitary fittings are used in food, beverage, biotechnology, pharmaceutical and other sanitary processing industries to transport fluids through pipes, with a variety of materials, for surface treatments and shapes to choose from.
* Components used to connect, terminate, control flow and change the direction of pipes in many different industries.

Specifications:
Part Name: Sanitary Ferrule Elbow 90 Degree Tube
Material: 304 Stainless Steel
Color: Silver
Sizes: 19MM, 25MM, 32MM, 38MM, 45MM, 51MM, 57MM, 63MM, 76MM, 89MM, 102MM (optional)
Maximum working pressure: 250 psi at 70 degrees Fahrenheit.
Data sheet: (below)
Flow Pipe OD Ferrule OD Fits Tri-clamp
19MM (3/4") 50.5MM (2") 1.5"
25MM (1') 50.5MM (2") 1.5"
32MM (1-1/4") 50.5MM (2") 1.5"
38MM (1-1/2") 50.5MM (2") 1.5"
45MM (1-3/4") 64MM (2-1/2") 2"
51MM (2") 64MM (2-1/2") 2"
57MM (2-1/4") 77MM (3") 2.5"
63MM (2-1/2") 77MM (3") 2.5 inches
76mm (3 inches) 89mm (3-1/2 inches) 3 inches
89mm (3-1/2 in) 102 mm (4 in) 3.5 in
102 mm (4 in) 115 mm (4-1/2 in) 4 in

Package Contents:
1 x Sanitary Ferrule Elbow 90 Degree Pipe

Note:
1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2.Please allow slight manual measurement deviation for the data.
