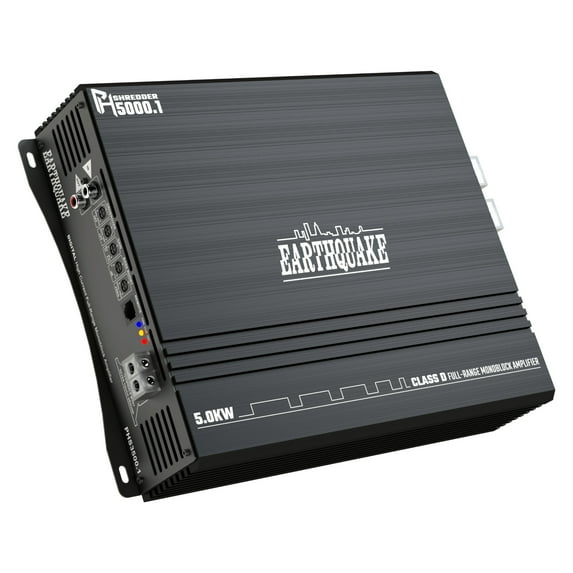

Earthquake Sound PHS5000.1 Class-D Full Range Monoblock 5000W Car Audio Amplifier
Key item features
-
Specifications:
- Channels: 1 (MONO)
- Class: Digital Class D
- Power Output:
- 5000 WRMS @ 1Ω / 1% THD
- 3500 WRMS @ 2Ω / 1% THD
- 1600 WRMS @ 4Ω / 1% THD
- Frequency Response: 15Hz–20kHz
- High Pass Filter: 15Hz–80Hz
- Low Pass Filter: 80Hz–20kHz
- Bass Boost Range: 35Hz–70Hz
- Bass Boost Level: 0–12dB
- Gain Min/Max: 5V–0.2V
- Signal-to-Noise Ratio: 90dB
- Efficiency: 99%
- Output Noise: 16mV
- Full Rated Power Current Draw: 235A Gain At Max
- Power, protection, and clip LED indicators
- Comes complete with remote base knob and cable (over 20ft)
- Fuse Rating: 1Ω 200A / 2Ω 150A / 4Ω 100A
- Minimum Wire Gauge Size: 1Ω 4–2 Gauge / 2Ω 2 Gauge / 4Ω 1 Gauge
-
Dimensions
- (H x W x D): 2.58″ (65mm) x 11.5″ (292mm) x 8.99″ (228mm)
- Weight: 8.12 lbs (3.68 kgs)
Specs
- BrandEarthquake Sound
- Rms power rating5000 W
- Channels1
- Peak audio power handling5000 W
- Rec. useCar Audio
- Size8.99" x 11.5" x 2.58"
- Free shipping
Free 30-day returns
(Only one option can be selected at a time)
How do you want your item?
About this item
Product details
Earthquake Sound PHS5000.1 Class-D Full Range Monoblock 5000W Car Audio Amplifier
Built for the audio nuts out there that eat, sleep, and breathe SPL, the Shredder makes its return for your chassis flexing and window shattering enjoyment. Earthquake Sound is proud to bring to you the all-new PowerHouse Shredder PHS5000.1 amplifier. This digital full-range high current monoblock amplifier is a weapon of mass destruction and is well equipped for the most demanding of mobile audio addicts and bassheads. From the heavy-duty heat sinks to the massive terminals, PowerHouse Shredder amps deliver brute power to drive the biggest speakers all while staying ice cold. With so much power at your disposal you'd think you'd need a license to own one. Available in three models to take on the most power-hungry speakers, PowerHouse Shredder series amplifiers stay cool and composed even under hard and continuous use while operating in the range of 99% efficiency. With a full range frequency response from 15Hz to 20kHz, PHS amplifiers can accept a broad variety of speakers to suit your musical needs. When high output with minimal distortion is required, look no further than Earthquake Sound's PHS amplifiers to get the job done. Shredder amplifiers are built to perform folks, so build your enclosures well. We'll break 'em.
-
Specifications:
- Channels: 1 (MONO)
- Class: Digital Class D
- Power Output:
- 5000 WRMS @ 1Ω / 1% THD
- 3500 WRMS @ 2Ω / 1% THD
- 1600 WRMS @ 4Ω / 1% THD
- Frequency Response: 15Hz–20kHz
- High Pass Filter: 15Hz–80Hz
- Low Pass Filter: 80Hz–20kHz
- Bass Boost Range: 35Hz–70Hz
- Bass Boost Level: 0–12dB
- Gain Min/Max: 5V–0.2V
- Signal-to-Noise Ratio: 90dB
- Efficiency: 99%
- Output Noise: 16mV
- Full Rated Power Current Draw: 235A Gain At Max
- Power, protection, and clip LED indicators
- Comes complete with remote base knob and cable (over 20ft)
- Fuse Rating: 1Ω 200A / 2Ω 150A / 4Ω 100A
- Minimum Wire Gauge Size: 1Ω 4–2 Gauge / 2Ω 2 Gauge / 4Ω 1 Gauge
-
Dimensions
- (H x W x D): 2.58″ (65mm) x 11.5″ (292mm) x 8.99″ (228mm)
- Weight: 8.12 lbs (3.68 kgs)
Specifications
Brand
Rms power rating
Channels
Peak audio power handling
Warranty
Warranty information
