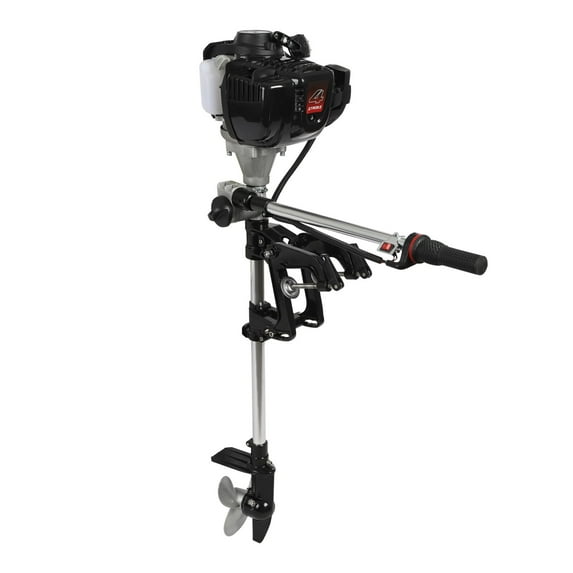

5.5HP Fishing Boat Engine Gasoline Air Cooled Motor 52cc 4 Stroke Outboard Motor

Suitable for small boats up to 8.2 feet in length, the 5.5 HP 4-stroke outboard motor is a simple and efficient device that can be operated by a handle, making it ideal for tasks on the water or for activities on the water. It is equipped with a 0.18-gallon fuel tank and can operate for 40-70 minutes when filled. Its sophisticated design and efficient fuel mechanism ensure excellent performance, while the user-friendly handle simplifies operation, even in challenging conditions. Whether you're embarking on a fishing trip or a recreational cruise, our 5.5 HP 4-stroke outboard motor is the ideal companion for your water adventures. It is suitable for small boats under 8.2ft. It is suitable for fishing, aquaculture, outdoor adventure, water sports, water tourism, water rescue, and other fields.

Specifications

Material: Aluminium Alloy, Rubber

Process: Aluminium Casting Process

Color: Black

Type: 4 Stroke Engine, Air Cooling

Assembly Required: Yes

Carburetor Type: Diaphragm Type

Mounting Type: ‎Boat Ramp Outboards

Ignition Mechanism: CDI

Trim and Tilt Mechanism: Manual

Operation Mode: Manual CVT( Without Reverse Gear )

Gasoline: Pure Oil (4 Stroke)

Propeller Specification: 3-blade Aluminum Alloy( Diameter is 16cm/6.3in)

Gear Ratio: 2:1

Displacement: 52cc

Horsepower: 5.5 HP

Fuel Tank Capacity: 0.7L/0.18gal

Fuel Consumption: 0.6-0.8L/0.16-0.21gal/H

Power: 1.82kw

Rotation Speed: 8500rpm

Full Fuel Running Time: 40-70min

Max. Load-bearing Capacity: 250kg/551.16lbs

Applicable Boat Size: Within 2.5m/8.2ft

Overall Product Height: 113cm/44.45in

YDFK7V-000900 Outboard Motor

Gross Weight: 6kg/13.23lbs

Net Weight: 5.8kg/12.79lbs

Product Size: 23*20*21cm/9.06*7.87*8.27in

Package Size: 25*35*20cm/9.84*13.78*7.87in

YDFK7V-003900 Bracket

Gross Weight: 6kg/13.23lbs

Net Weight: 5.5kg/12.13lbs

Product Height: 92cm/ 36.22in

Crossbar Length: 50cm/19.69in

Package Size: 92*15*15cm/36.22*5.91*5.91in

Package Included

1* Outboard Motor

1* Bracket

1* English Manual

All Accessories for Assembly

Notes

We send the outboard motor and bracket separately to protect the product from damage during transportation. Please wait patiently for all parts to arrive.

Please read the operating manual and label completely before use, and pay particular attention to the safety instructions included. Please note that the speed is certainly not the same when one person is on it or many people are on the boat. Please don't start the motor on the bank. If you want to test the motor, it should be done in the river. Please don't use the motor when it stops coming out of the water.

Please note that gasoline(not included) is prone to oxidation and degradation during storage. Using degraded gasoline can clog fuel lines and cause starting difficulties. If the engine has not been used for more than half a month, please drain the fuel in advance.

Please note that the propeller can withstand fresh water, but we do not recommend using it in salt water.

Please prepare enough fuel according to the sailing distance. Please carry a life jacket and hand paddle (both not included). Please check the installation of the outboard motor before sailing.

Please note that all gasoline engines make noise, but this is normal. The use of fishing gear should comply with national laws and regulations, comply with local government water control, protect the environment, and cherish the ecology.

If you need to accelerate, please accelerate slowly, please don't accelerate sharply or it will increase the wear and tear of the clutch.
