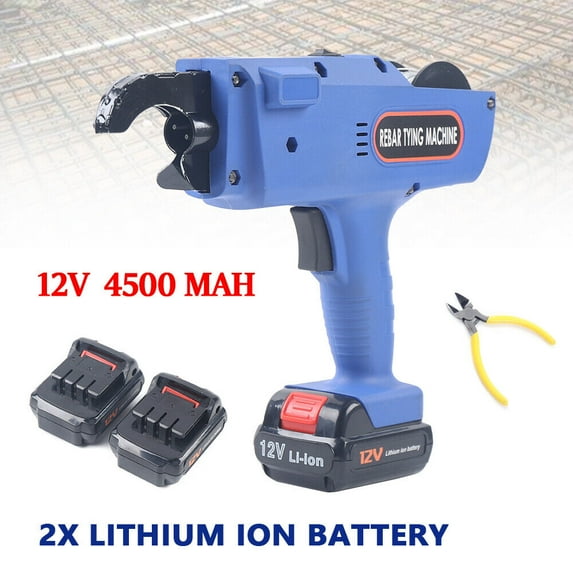

Miumaeov Automatic Rebar Tier Tying Machine Electric Steel Rebar Strapping Tying Gun Tool

Color:blue

Material: Plastic + Metal

Voltage: 12v

Battery: Lithium Ion Batteries

Battery Capacity: 4500 Mah

Battery Charging Time: 1.5 Hours Full Filling

Tying Wire Diameter: 0.8mm

Tying Wire Length: More than 110 M

Applicable Scope of Steel Strapping: 8mm - 34mm

Knot Wire Length: 300 - 500mm

Knot Number per Charge: 1500 Times

Knot the Required Time: 0.8 Seconds at a Time

Machine Size: 275 Mm * 65 Mm * 240 Mm / 10.83''X2.56''X9.45''(Appr.)

Tool Box Size: 42cm (16.54inch) *30cm (11.81inch) *10cm (3.94inch)

Tying Wire Installations

1. in the State of Start-up, Press the Locking Plate of the Opening Wire Plate, Open the Plate Cover.

2. Take out the Tying Wire, Tear the Packaging Film, Pull Straight Wire Head About 10 Cm, Load into the Binding Machine in the Clockwise Direction, the Wire Head into the Guide Tap Tube.

Note: Clench the Wire Plate When Tear the Packaging Film, Do Not Let the Wire Loose. If the Wire Is Free to Disperse, It Will Lead to the Spread of the Wire Stuck in the Wire Plate.

3. Insert the Head of the Wire Guide into the Tap Pipe Until It Is Resisted.

4. Cover the Plate and Fasten the Locking Piece.

5. Pinch the Wire Forward with Two Fingers, Press and Hold the Switch and Send the Wire out.

6. If You Want to Take out the Wire Plate When Finished, Press and Hold the Locking Piece, Open the Wire Plate Cover Plate, Holding the Wire Tray to the Side and Pull out.

Operation Instructions

1. the Rebar Tirer's Jaws Are Stuck to the Intersection of the Steel Bars, and the Steel Bars Are Hooked at 45 Degree Angles.

Note: There Can Be No Barrier Between the Mouth of the Jaws and the Wire.

2. Press the Start Switch, the Rebar Tirer Machine Carries on the Work (Spins, Hinges Tightly, Cuts off)

Note: Press One Button at a Time, Do Not Probe the Jaws at Work.

3. When Automatic Completion, the Jaw from the Steel bar Intersection and Then Pull Back, Complete the Process and Prepare for the Next Binding.

4. When the Binding Process Is Not Completed, Do Not Unplug the Machine in Advance, Otherwise It Will Cause the Bundling of the Goods Tied Skidding.

Operating Skills

1. in Use, the Left Tilt 45 Degrees After Banding, the Next Time the Banding into a Right Tilt 45 Degrees Banding, Left and Right Alternately Banding.

2. When the Machine Is About to Tighten, the Machine Will Appear Slightly Shaking, While Holding the Hand of the Machine Not Too Tight, You Can Relax Properly.

Maintenance

1. Clean the Machine Regularly, Keep the Wire Mouth Clean.

2. This Product Can Not Be Placed Randomly, so As Not to Cause Damage to Parts.

3. Batteries Must Not Be Placed Together with Other Metal Objects to Avoid Short Circuit.

4. Non-professional Do Not Disassemble the Machine Arbitrarily, Lest Cause Damage.

5. When You Encounter an Unresolved Failure, Please Give It to the Professional Repair.

Package Included:

1x Tying Machine

1x Pliers

1x Charger

1x Storage Box

2x Lithium Ion Batteries

1x Tying Wire in the Machine (Tying Wire Standard: About 0.8 Mm X 110 M/Roll)

Notice:

Please Allow 1-3cm Error Due to Manual Measurement and Make Sure You Do Not Mind Before Ordering.
