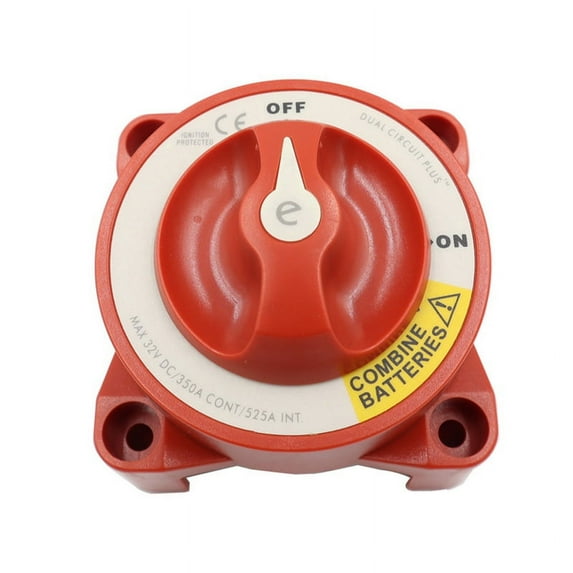

5511E Dual Circuit Plus Battery Rotary Switch Isolators Disconnect 12V-32V 350 Amp E-Series for Car Truck Ship Speedboat

Make-before-break contact design allows switching without power interruption.
Ignition protected-safe for installation aboard gasoline powered boats.
Case design allows or rear panel mounting.
350 Amps continuous rating for inboard gasoline or engines.
Greatly applicable for RV, travel trailer, marine, boat, , truck, ATV, UTV, etc.

Switch Type:Dual Circuit Plus
Battery Combine:Yes
Alternator Field Disconnect:No
Maximum Voltage:32V DC
Terminal Stud Torque:140 in-lb (15.82 Nm)
Continuous Rating:350A
Intermittent Rating:525A (5 min)
Cranking Rating 10 sec:1000A
Cranking Rating 1 min:750A
Battery Inputs:2
Cable Clearance For 4/0 AWG Cables:1.10in (27.94 mm)
Cable Size to Meet Ratings:4/0 AWG (120mm²)
Mounting Holes:Accept 1/4inch(M6) Screw
Terminal Stud Size:3/8inch-16 (M10)
Colour:White & Red
Material:Plastic+brass

Package Contents:
1 * Dual Circuit Plus Battery Rotary Switch

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
