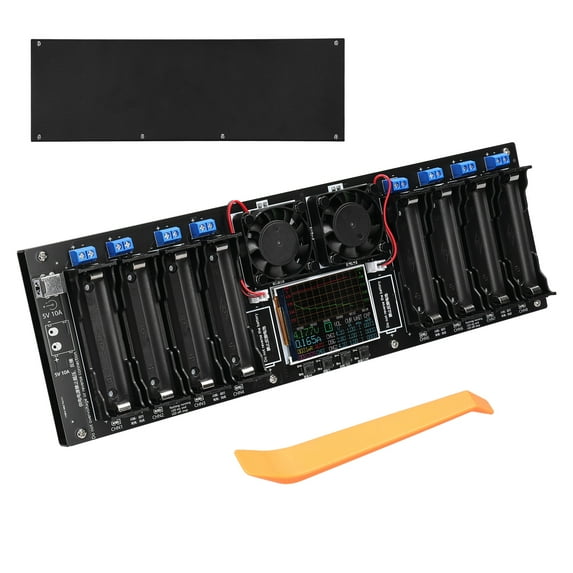

Hero image 0 of 8-Channel Battery Tester 2.4inch TFT Display Battery Capacity Testing With Multi-Mode Functionality Enhanced Safety, And Intuitive Displaying, 0 of 6
8-Channel Battery Tester 2.4inch TFT Display Battery Capacity Testing With Multi-Mode Functionality Enhanced Safety, And Intuitive Displaying
(No ratings yet)
Key item features
- 【Multi-Functional Modes & Customizable Parameters】: The tester offers versatile operating modes of Automatic, Charging, Discharging, and Activation, with customizable parameters such as voltage, current, and time settings. This flexibility enables testing and conditioning of batteries, catering to diverse testing needs
- 【8 Independent Channels with Synchronization Capabilities】: Featuring 8 independent channels, each capable of conducting separate parameters setting simultaneously, and the function for channel synchronization simplifies the testing process and maximizes the efficiency
- 【Intuitive Display & Comprehensive Data】: The 2.4-inch display provides real-time viewing of battery voltage, current, and operational status, alongside capacity metering and total program runtime. This detailed information empowers users with insights into battery state and performance during testing
Specs
- BrandHtovila
- Height2.36 in
- Weight1.08 lb
- Has written warrantyNo
Current price is USD$52.81
Price when purchased online
- Free shipping
Free 30-day returns
How do you want your item?
Columbus, 43215
Arrives between May 13 - May 20
|
Sold and shipped by LesoGood Shop
3.656357388316151 stars out of 5, based on 291 seller reviews(3.7)291 seller reviews
Free 30-day returns - in store or online
Similar items you might like
Based on what customers bought
Best seller D-FantiX Battery Tester, Universal Battery Checker for AAA AA C D 9V 1.5V Button Cell Household Batteries Model BT-168 $10.99 Was $15.99
Best seller
$1099current price $10.99, Was $15.99$15.99D-FantiX Battery Tester, Universal Battery Checker for AAA AA C D 9V 1.5V Button Cell Household Batteries Model BT-168
7114.5 out of 5 Stars. 711 reviewsBattery Digital Battery Checker 8 In 1 Li-ion Battery Tester Lipo LiFe NiMH Voltage Tester $12.89
$1289current price $12.89Battery Digital Battery Checker 8 In 1 Li-ion Battery Tester Lipo LiFe NiMH Voltage Tester
D-FantiX Digital Battery Tester for AAA AA C D 9V 1.5V, Household Battery Checker Tester for Small Batteries Button Cell (Model: BT-168D) $12.99 Was $14.99
$1299current price $12.99, Was $14.99$14.99D-FantiX Digital Battery Tester for AAA AA C D 9V 1.5V, Household Battery Checker Tester for Small Batteries Button Cell (Model: BT-168D)
854.1 out of 5 Stars. 85 reviews18650 Lithium Battery Capacity Tester Automatic Internal Resistance MAh Digital Power Detector Module $18.47
$1847current price $18.4718650 Lithium Battery Capacity Tester Automatic Internal Resistance MAh Digital Power Detector Module
15 out of 5 Stars. 1 reviewsLithium Battery Monitor Battery Capacity Indicator Detection Accuracy ±1% $14.69 Was $16.41
$1469current price $14.69, Was $16.41$16.41Lithium Battery Monitor Battery Capacity Indicator Detection Accuracy ±1%
Universal Battery Checker Battery Tester Capacity Check Tool for AA 9V 1.5V Button Cell Batteries Quickly Determine $8.39
$839current price $8.39Universal Battery Checker Battery Tester Capacity Check Tool for AA 9V 1.5V Button Cell Batteries Quickly Determine
Battery Storage Box, Battery Tester, Battery Strength Indicator Capacity Tester Clearance $10.44
$1044current price $10.44Battery Storage Box, Battery Tester, Battery Strength Indicator Capacity Tester Clearance
Battery Capacity Tester & Voltage Meter with LCD Display Backlit Waterproof $14.92
$1492current price $14.92Battery Capacity Tester & Voltage Meter with LCD Display Backlit Waterproof
Waterproof IP67 Battery Tester 10-100V with 100A Shunt Saving Capacity Monitor /SoC/Ah for Lithium, LiFePO4 $30.99
$3099current price $30.99Waterproof IP67 Battery Tester 10-100V with 100A Shunt Saving Capacity Monitor /SoC/Ah for Lithium, LiFePO4
TC169 High Coulombmeter DC6-60V Lithium Battery Capacity Tester Indicator Color Screen Power Meter Ammeter $44.99
$4499current price $44.99TC169 High Coulombmeter DC6-60V Lithium Battery Capacity Tester Indicator Color Screen Power Meter Ammeter
Battery Capacity Tester Voltage Current LCD Display with Memory Function TR16 $28.96 Was $32.36
2 optionsAvailable in additional 2 options$2896current price $28.96, Was $32.36$32.36Battery Capacity Tester Voltage Current LCD Display with Memory Function TR16
Highly accurate lithium battery resistance tester with customizable display settings for enhanced user experience $58.99
$5899current price $58.99Highly accurate lithium battery resistance tester with customizable display settings for enhanced user experience
RC3563 Battery Voltage Internal Resistance Tester Trithium Lithium Iron Phosphate 18650 Battery Tester,Tester Clip $30.85
$3085current price $30.85RC3563 Battery Voltage Internal Resistance Tester Trithium Lithium Iron Phosphate 18650 Battery Tester,Tester Clip
Clearance Eoozwa Battery Tester Universal Battery Checker with LCD Display Digital Multi Purpose Small Battery Checker for AA AAA 9V 6F22 1.5V Button Cell Batteries,Accurate Testing and Clear Display $3.94 Was $6.94
Clearance
$394current price $3.94, Was $6.94$6.94Eoozwa Battery Tester Universal Battery Checker with LCD Display Digital Multi Purpose Small Battery Checker for AA AAA 9V 6F22 1.5V Button Cell Batteries,Accurate Testing and Clear Display
Battery tester digital display 12V/24V internal resistance tester $34.95
$3495current price $34.95Battery tester digital display 12V/24V internal resistance tester
DC 0-420V 200A WiFi 2in1 Battery/Power Tester DC Digital Display Current Voltage Power Tester Battery Tester $38.69
$3869current price $38.69DC 0-420V 200A WiFi 2in1 Battery/Power Tester DC Digital Display Current Voltage Power Tester Battery Tester
Clearance Digital Battery Tester | Multi-Purpose Capacity Meter for AA AAA C D N 9V 6F22 1.5V 3V | LCD Display Battery Checker Tool | Portable Battery Life Monitor with ABS Housing - Professional Testing $7.28 Was $8.18
Clearance
$728current price $7.28, Was $8.18$8.18Digital Battery Tester | Multi-Purpose Capacity Meter for AA AAA C D N 9V 6F22 1.5V 3V | LCD Display Battery Checker Tool | Portable Battery Life Monitor with ABS Housing - Professional Testing
Digital Display Battery Voltage Internal Resistance Tester 0-999MΩ Universal 18650 Lithium Battery AA Detection $22.93
$2293current price $22.93Digital Display Battery Voltage Internal Resistance Tester 0-999MΩ Universal 18650 Lithium Battery AA Detection
8 Channel 18650 Lithiums Battery Capacity Tester Auto Charging/Discharge Tester Monitoring LCD Display $55.12
$5512current price $55.128 Channel 18650 Lithiums Battery Capacity Tester Auto Charging/Discharge Tester Monitoring LCD Display
Digital Battery Tester for AA AAA 9V, 1.5V-9V Battery Capacity Meter with LCD Display, Portable Power Checker for C D N 6F22 Batteries, Easy to Use Voltage Tester $4.69
$469current price $4.69Digital Battery Tester for AA AAA 9V, 1.5V-9V Battery Capacity Meter with LCD Display, Portable Power Checker for C D N 6F22 Batteries, Easy to Use Voltage Tester
About this item
Product details
8-Channel Battery Tester 2.4inch Display Battery Capacity Testing with Multi-Mode Functionality Enhanced , and Intuitive Displaying
Specification:
Name: Battery Tester
Material: plastics
Working voltage: 5VDC, 10A over-voltage necessarily burning machine
Powersupply interfaces: ①: Direct Current 5.5 t interface, ② 5V positive and negative electrode welding spots
Reverse connection protective of powersupply: reverse connection is protected, and reverse connection of powersupply is prohibited
Channel type: 8 independent channels, independent of each other and independent of each other
Channel synchronization: support 8-channel setting synchronization and set parameters of each channel separately
Charging current: each channel is independent of about 1A non-constant current charging, and the charging current is not .
Charging stop voltage: 3.7V, 3.8V, 3.9V, 4.0V, 4.1V, 4.2V, 6 gears
Recharge stop voltage: 3.0V, 3.1V, 3.2V, 3.3V, 3.4V, 3.5V, 3.6V, 3.7V, 3.8V, 3.9V, 4.0V, 4.1V, 4.2V, 13 gears
Charging end current: 100mA, 200mA, 300mA,
Discharge current: each channel is independent of about 1A non-constant current discharge, and the discharge current is not
Discharge Stop voltage: 2.0V, 2.1V, 2.2V, 2.3V, 2.4V, 2.5V, 2.6V, 2.7V, 2.8V, 2.9V, 3.0V, 3.1V, 3.2V, 3.3V, 3.4V, 3.5V, 3.6V, 17 gears
Standstill time: 1-5min
Channel status preview: support 1-screen preview of 8-channel status
Single channel detail display: support
Single-channel charging and discharging curve display: support
Internal resistance detection: two-wire direct current for internal resistance measurement, only for sorting and analogy of the same batch
Heat dissipation mode: active heat dissipation
Overheat protecting: support
Cyclic charging and discharging: only one charging - discharging - charging cycle is supported in automatic mode, and multiple cycles are not supported.
External test: it supports external discharge through 2P terminal. A single channel only supports one of the battery base or external test, and cannot use the battery base and external battery for test at the same time
Reverse connection protective function of battery: reverse connection is protected, and reverse connection of battery is prohibited
Item size: 310 x 112 x 38mm / 12.20 x 4.41 x 1.50in
Item weight: 397g / 0.88lb
Package size: 335 x 115 x 60mm / 13.19 x 4.53 x 2.36in
Package weight: 508g / 1.12lb
Package List:
Specification:
Name: Battery Tester
Material: plastics
Working voltage: 5VDC, 10A over-voltage necessarily burning machine
Powersupply interfaces: ①: Direct Current 5.5 t interface, ② 5V positive and negative electrode welding spots
Reverse connection protective of powersupply: reverse connection is protected, and reverse connection of powersupply is prohibited
Channel type: 8 independent channels, independent of each other and independent of each other
Channel synchronization: support 8-channel setting synchronization and set parameters of each channel separately
Charging current: each channel is independent of about 1A non-constant current charging, and the charging current is not .
Charging stop voltage: 3.7V, 3.8V, 3.9V, 4.0V, 4.1V, 4.2V, 6 gears
Recharge stop voltage: 3.0V, 3.1V, 3.2V, 3.3V, 3.4V, 3.5V, 3.6V, 3.7V, 3.8V, 3.9V, 4.0V, 4.1V, 4.2V, 13 gears
Charging end current: 100mA, 200mA, 300mA,
Discharge current: each channel is independent of about 1A non-constant current discharge, and the discharge current is not
Discharge Stop voltage: 2.0V, 2.1V, 2.2V, 2.3V, 2.4V, 2.5V, 2.6V, 2.7V, 2.8V, 2.9V, 3.0V, 3.1V, 3.2V, 3.3V, 3.4V, 3.5V, 3.6V, 17 gears
Standstill time: 1-5min
Channel status preview: support 1-screen preview of 8-channel status
Single channel detail display: support
Single-channel charging and discharging curve display: support
Internal resistance detection: two-wire direct current for internal resistance measurement, only for sorting and analogy of the same batch
Heat dissipation mode: active heat dissipation
Overheat protecting: support
Cyclic charging and discharging: only one charging - discharging - charging cycle is supported in automatic mode, and multiple cycles are not supported.
External test: it supports external discharge through 2P terminal. A single channel only supports one of the battery base or external test, and cannot use the battery base and external battery for test at the same time
Reverse connection protective function of battery: reverse connection is protected, and reverse connection of battery is prohibited
Item size: 310 x 112 x 38mm / 12.20 x 4.41 x 1.50in
Item weight: 397g / 0.88lb
Package size: 335 x 115 x 60mm / 13.19 x 4.53 x 2.36in
Package weight: 508g / 1.12lb
Package List:
Packing List:
1 x Battery Tester
- 【Multi-Functional Modes & Customizable Parameters】: The tester offers versatile operating modes of Automatic, Charging, Discharging, and Activation, with customizable parameters such as voltage, current, and time settings. This flexibility enables testing and conditioning of batteries, catering to diverse testing needs
- 【8 Independent Channels with Synchronization Capabilities】: Featuring 8 independent channels, each capable of conducting separate parameters setting simultaneously, and the function for channel synchronization simplifies the testing process and maximizes the efficiency
- 【Intuitive Display & Comprehensive Data】: The 2.4-inch display provides real-time viewing of battery voltage, current, and operational status, alongside capacity metering and total program runtime. This detailed information empowers users with insights into battery state and performance during testing
