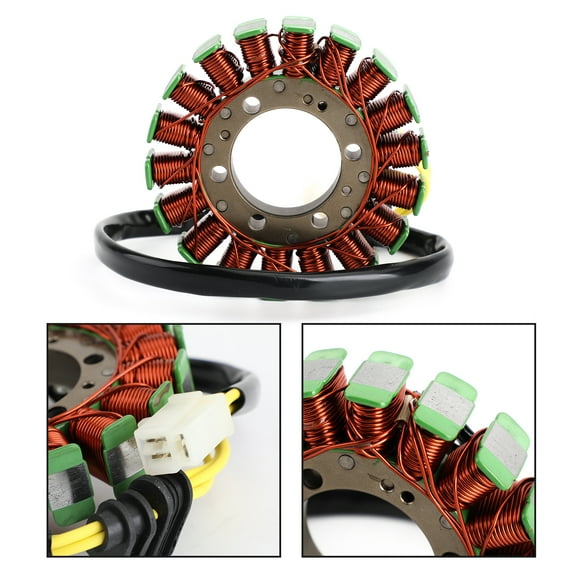

Motor Genic Alternator Magneto Stator for Honda VT250 Spada/Castel VTR250 Interceptor 88-90

Magneto Generator Engine Stator Coil Fit For Honda VTR250 Interceptor VT250 VTZ250

FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Connector included.
All products shipped are tested.

SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil

Dimensions :
Interior diameter : 42mm / 1.64 inches
Exterior diameter : 107mm / 4.23 inches
Pole's Thickness : 24.3mm / 0.95 inches
Pole's Width : 13mm / 0.51 inches

Other specifications :
Number of wires: 3
Number of pins: 3
Number of plugs: 1
Number of fixation holes: 5(+1)
Number of poles: 18

PART NUMBER(S):
31120-KBV-004
31120-KV0-004

FITMENT:
Fits Honda VT250 Spada/Castel 1988-1990
Fits Honda VTR250 Interceptor 1988-1990
Fits Honda VT250 FD 1983
Fits Honda VT250 Magna 250 1996-1998
Fits Honda VTR250 W/Y/1-7 (MC33) 1998-2007
Fits Honda VTZ250 H/J/K 1986-1988

PACKAGE INCLUDED:
1x Generator Stator Coil

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
