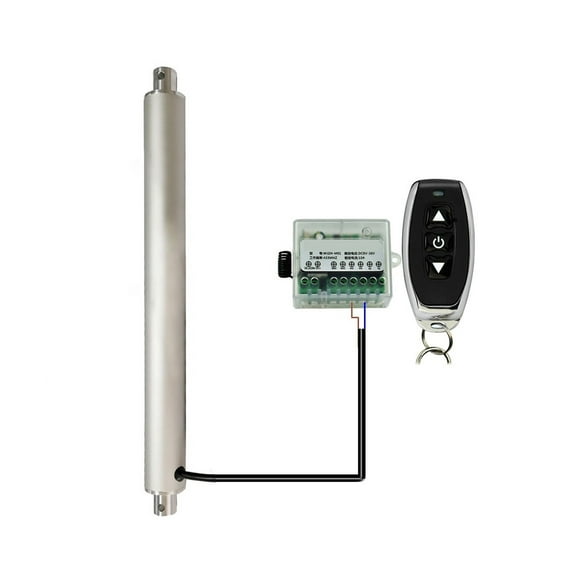

Linear Actuator 12V Remote Controller Kit CW CCW High Torque Max 1500N 15mm/s 50mm-1000mm Stainless Steel Rod ,Against Corrosion

Product Description

Package include:

1) Linear actuator 1 PCS

2) Remote controller 1 PCS

Voltage: DC12V,24V

Limited switch: built-in

Stroke: 50mm-1000mm

Max Load:1500N(DC24V)/1200N(DC12V), 100N-2500N(option)

Protect grade: IP56

Installation hole distance: L=253+Stroke±2mm

External Diameter: 35mm

Internal Diameter: 20mm

Materia:Outer tube aluminium alloy

Inner tube stainless steel

Working frequency: 20%

Working temperature: -20~70

Remote control distance: 50 meters(No occlusion)

Control Mode: Inching mode(default)/interlock mode. user can change the mode by pairing learning operation.

1.Inching Mode(default): Press and hold the remote control button, the motor will rotate forward, and the motor will stop when released.

Press and hold the remote control button, the motor reverses, and the motor will stop after releasing it.

2.Interlock Mode: Press the remote control button once, the motor will rotate forward, press the remote control button again, the motor will stop, press the remote control button once to reverse the motor, and press the remote control button again to stop the motor.

How to change to Interlock Mode

Interlock Mode: Press the learning button on the controller twice continuously, the learning indicator will flash, and then press the remote control button, the learning indicator flashes three times and then lights up, press the remote control button, the learning indicator flashes lights up after three times, press the remote control button, the learning indicator flashes three times and then goes out, the learning is successful.
