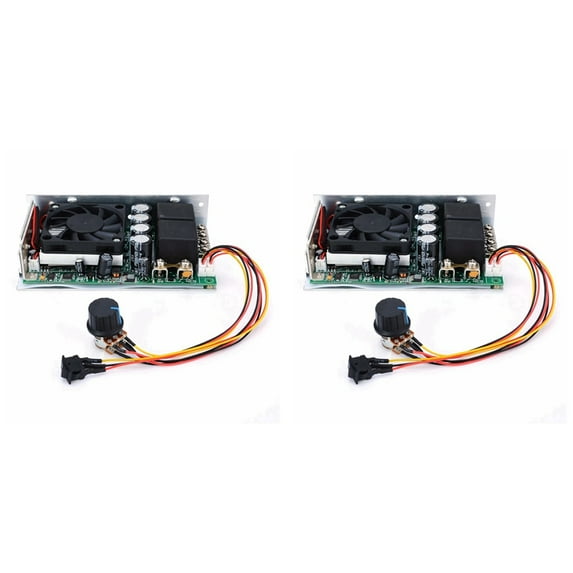

2X DC 10-50V Speed Controller 100A 3000W Programmable Reversible PWM Control Motor Speed Controller

Control Power: 0.01-3000W (maximum rated current of 60A) different operating voltages corresponding to different control power as follows:
Operating Voltage 12V, 12V * 100A = 1200W
Operating Voltage 24V, 24V * 100A = 2400W
Operating Voltage 30V, 30V * 100A = 3000W
Quiescent Current: 0.04A (operating voltage DC10V to DC30V quiescent current not exceed 40ma)
PWM Duty Cycle: 0% -100%
PWM Frequency: 15khz
Operating temperature: -20Celsius~40Celsius (ambient temperature of minus 20 degrees to 40 degrees ) The governor of the industrial-grade quality, can be less than zero stable work environment, general commercial-grade quality of governor in It is not stable work in temperatures.
Circuit board Dimensions: 145x80x40mm / 5.7inch x 3.1inch x 1.6inch (not including adjustment portion potentiometer)
Application:
Various types of general-purpose DC brush motor speed
Various types of vehicles with motor speed (automotive cooling fan speed, auto fan speed, auto wiper motor speed, automotive air-conditioning fan speed)
The production line belt speed, pipeline exhaust fan speed, treadmill speed, multiple computers in parallel fan speed control, electronic fan speed control.
Various types of DC lamp dimmer types of DC heater thermostat.
Colour:silver
Material:Metal

Package Contents:
2 x motor speed controller

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
