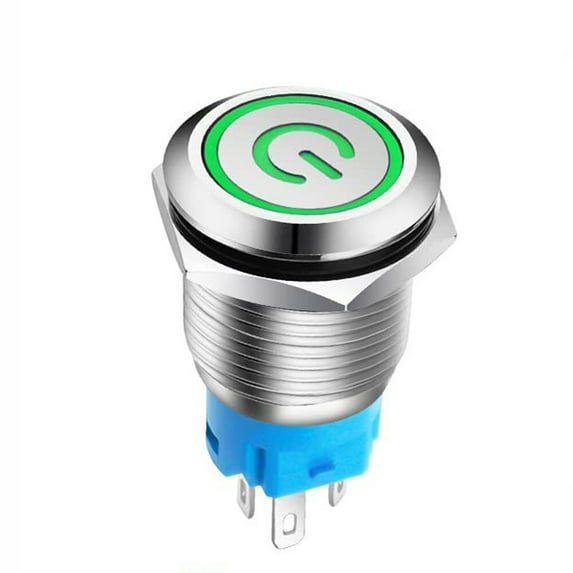

PrePat Latching Push Button Power Switch 16mm 12V LED ON OFF Waterproof Stainless Steel

Latching Push Button Power Switch 16mm 12V LED ON OFF Waterproof Stainless Steel

Features:

• LED Voltage: 12V - 24V


• Hole Size Required: 0.63''/16mm


• Latching Switch: Press it, turn ON; Press it again, turn OFF.


• Contact Configuration: 1NO 1NC


• Electrical Life: 500 thousand times.


• Mechanical Life: 1,000,000 cycles


• High quality metal material & IP67 waterproof protection can be used in wet or dusty environment


• Used in a variety of applications including cars, boats, motorcycles and electronics modifications


• Operation Type: Latching (Push the button, ON; Push the button again, OFF)



Specifications:

• Switch Rating: 5A/250VAC


• Mechanical life: 1,000,000 cycles


• Electrical life: 500,000 cycles


• Protection level: IP67, IK10


• Mounting Cut Hole: 16mm


• Operation Type: Latching


• Switch Contact: 1NO 1NC


• LED Rating: 15mA, AC/DC 9-24V


• Contact Material: Silver alloy


• Button Material: Stainless Steel



Package Includes:

• 1x Push Button Switch


• 1x Pigtail Socket
