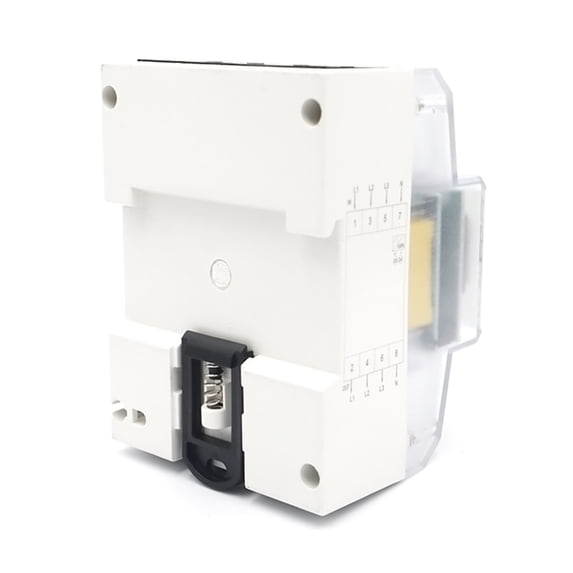

3 Phase 4 Wire Energy Meter 220/380V 5-80A Energy Consumption KWh Meter DIN Rail Installation Digital Electric Power Meter With LCD Backlight Display

3 Phase 4 Wire Energy Meter 220/380V 5-80A Energy Consumption kWh Meter DIN Rail Installation Digital Electric Power Meter with LCD Backlight Display
Specification:
It's a simple three phase four module DIN rail meter with flame retardant ABS case, which is widely in sub-metering system. It's of concise appearance, compact size and , to use.

Features:
3-phase 4-wire energy meter with high accuracy is designed for the measurement of rated frequency 50 or 60Hz single-phase AC active electricity.
flame retardant ABS case, with impact resistance, heat/ cold resistance, insulativity and durability.
With 6+2 digits backlight LCD display, the meter accurately counts and clearly displays the energy consumption.
Adopts 35mm DIN standard rail installation, compact size and light weight make installation easier.
Pure copper wiring terminal with excellent conductivity and corrosion resistance can ensure large current during -time performance.

Note:Size and color may be slightly different due to manual measurement and different lighting conditions. Thanks for understanding.

Specifications:
Case Color: Transparent/ White Optional
Material: Flame Retardant ABS
Display: LCD Display with Backlight
Current: 3x580A
Voltage: 3x220/380V
Accuracy Class: 1.0
Standard: IEC62053-21
Frequency: 50/ 60Hz
Impulse Constant: 400imp/kWh
Power Consumption: Less than or equal to 2W
Starting Current: 0.004lb
Working Temperature: -20~55 degrees Celsius
Storage Temperature: -25~70 degrees Celsius
Item Size: 100 x 76 x 65mm / in
Item Weight: 380g / 13.40oz
Package Size: 110 x 80 x 70mm / in
Package Weight: 400g / 14.11oz

Package List:
1 x Energy Meter
1 x User Manual

Package List:
1 x Energy Meter
1 x User Manual
