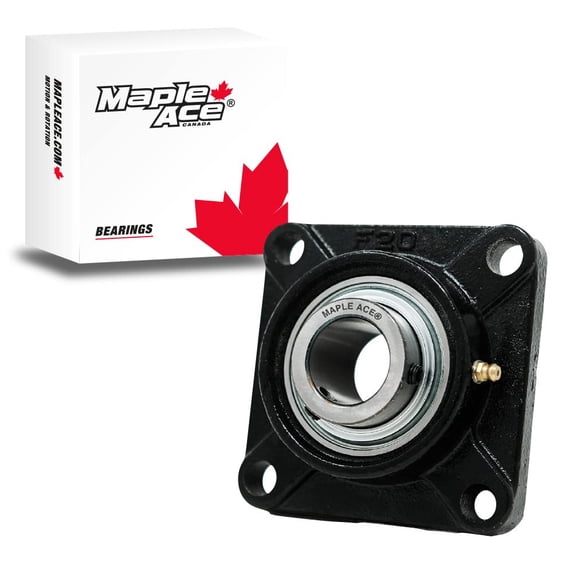

MAPLE ACE UCF206-20 Square Flange Bearing 1-1/4" Bore, 4-Bolt Self-Aligning, Solid Base, R3 Triple Lip Seal, Heavy Duty

Product Description

This UCF SQUARE FLANGE-MOUNT BEARING consists of an INSERT BEARING and a CAST IRON housing. The INSERT BEARING has Triple-Lip Seal: Unmatched protection in highly contaminated environments. Ensures significant bearing lifespan in severe dust, sand, slurry, and water. The SQUARE FLANGE-MOUNT BEARING can be mounted on levelled surfaces using the Four Bolt Holes. Grease Fitting Offset on top, to Relubricate the bearing. Has a Set Screw Lock on its surface, for securing the shaft. - Specification: Item UCF206-20R3, Series UCF200, Bearing Number UC206-20R3, Housing Number F206, Number of Bolts 4, Bolt Size (S) 3/8 in, Bearing Bore Diameter (d) Metric 31.75 mm, Bearing Bore Diameter (d) Inch 1-1/4 in, Bearing Width Inner Ring (Bi) Matric 38.10 mm, Bearing Width Inner Ring (Bi) Inch 1.500 in, Bolt Hole Center to Center (e) Matric 83 mm, Bolt Hole Center to Center (e) Inch 3.267 in, Flange width (a) Matric 108 mm, Flange width (a) Inch 4.251 in, Overall Height (Z) Matric 40.2 mm, Overall Height (Z) Inch 1.582 in, Dynamic Load Rating Cr 19500 N, Static Load Rating Cor 11200 N, Limiting Speed 6300 r/min, Clearance Normal, Bearing Sealing type R3 Triple-Lip Seal, Lubrication Type Grease Shell RL2, Lubrication Temperature -20°C to +160°C, Rolling Element Indicator Ball, Bearing Material Gcr15, Housing Material H200 Cast Iron, Locking Type Set Screws, Weight 1.00 KG.
