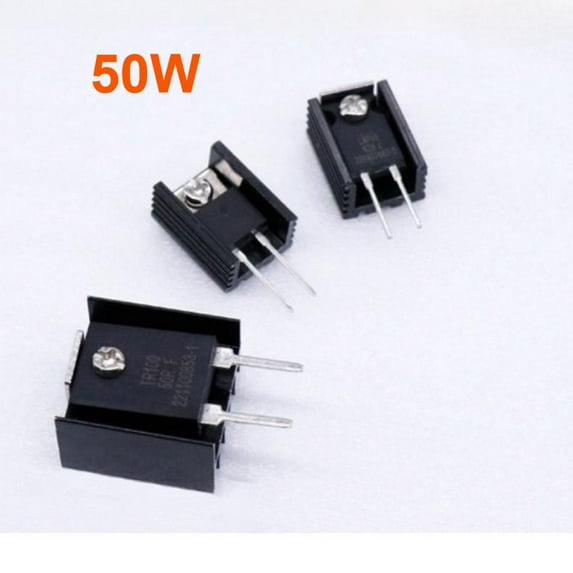

RTP Thick Film Non-Inductive Precision Resistor 35W 50W 100W 50ohm 1%

BASIC PARAMETERS

Item: RTP/LXP Thick Film Chip Resistor
Application: Small size, high power, anti-sulfur, anti-salt, anti-mold, anti-moisture
Packaging: Bulk packaging, each with an independent plastic bag
1%-5% Tolerance

SPECIFICATIONS

Specification:

MXP35 TO-220 Thick Film Chip
LXP50 TO-220 Type
LXP100/100L TO-247 Type
Resistance Range: 0.2Ω ~ 1MΩ

Resistance Tolerance: ±1% ~ ±10% (Standard tolerance ±0.5%)

Temperature Coefficient: ±50PPM/°C (25°C ~ 105°C)

Power Rating:

MXP35 TO-220: 25°C rated power 35W, Maximum working voltage 350VDC
LXP50 TO-220: 25°C rated power 50W, Maximum working voltage 420VDC
LXP100/100L TO-247: 25°C rated power 100W, Maximum working voltage 700VDC
Dielectric Withstand Voltage: 1800VAC

Insulation Resistance: ≥10GΩ

Load Life: 2 times rated power, not less than 1.5 times the maximum working voltage, life 5000 hours, ΔR ≤ ±(0.3%R + 0.001Ω)

Thermal Shock: Rated power 2,000 cycles, MIL-R-39009D ΔR ≤ ±(1.0%R + 0.001Ω)

Moisture Resistance: MIL-STD-202, 106 cycles, ΔR ≤ ±(0.5%R + 0.001Ω)

Salt Spray: MIL-STD-202, 107 cycles, ΔR ≤ ±(0.3%R + 0.001Ω)


Package:
1 x Resistor
