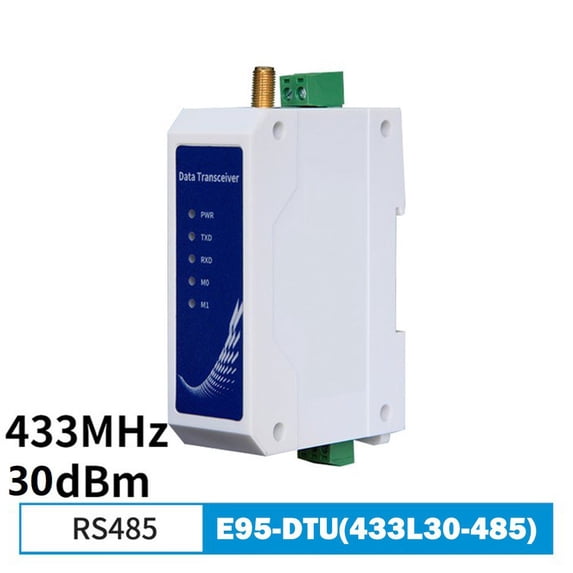

8Km Long Range 433Mhz 30Dbm E95-Dtu(433L30-485) Rs485 Wireless For Lora Modem

Product introduction:
The wireless data transmission radio adopts-grade for LoRa modulation technology, has a variety of transmission methods, works in the(410.125～493.125MHz) frequency bands, the radio provides transparent RS485 interface, rail type installation structure, supports AC85~265V/ DC8~28V voltage input. for LoRa spread spectrum technology will bring longer communication distance and stronger anti-interference ability.

Feature:
*433MHz wireless digital radio
*High-speed continuous data transmission, low latency and high speed
*Automatic relay networking, multi-level relays are suitable for ultra-long-distance communications, and multiple networks can run simultaneously in the same area
*Transmit power up to 1W and multi-level adjustable
*Ultra-low power consumption, 12V power supply, waiting current is only 18mA, emission current<0.4A

Specification:
Part Name:for LoRa Modem
Color: as show
Material:Plastic
Model: E95-DTU(433L30-485)
Carrier frequency: 410.125～493.125MHz(default 433.125MHz)
Transmit power: 30dBm(max)
Communication distance: 8km
Interface type: RS485
Power supply: DC 8~28V
Interface：SMA-K
Operating temperature:-40℃~+85℃
Product size: 92*66*30mm
Product weight: 95g

Package Content:
*for LoRa Modem

Note:
. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
