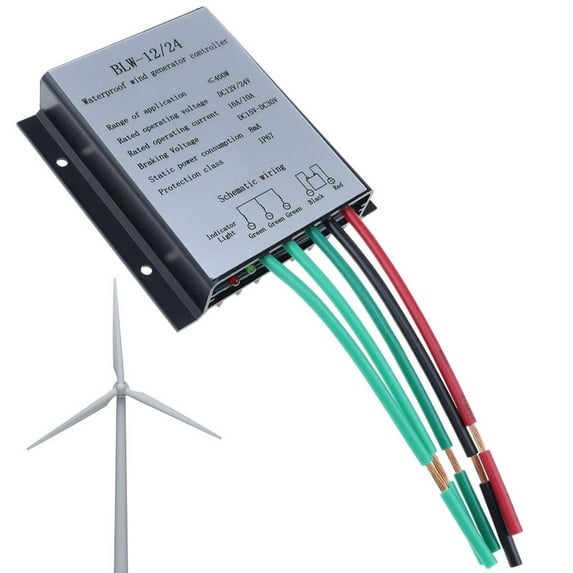

400W Wind Turbine Charge Controller Dc12V/24V Mppt Boost Waterproof Ip67 For Wind Power System With Overcharge Protection

Features:
* Brand new and high quality
* Made of high quality materials, sturdy and
* High efficiency: The wind power regulator of the wind turbine adopts MPPT boost charging technology. It starts at voltage in the breeze and has sufficient to solve the problem of slow wind turbine speed and inability to charge.
* Long service life: Thermal conductive silicone filling and sealing, IP67 waterproof, dustproof, anti- oxidation, and wear-resistant, can be used in harsh environments with high and temperatures of -35°C to 65°C.
* High safety: The wind power regulator for wind turbines has complete overcharge protection, reverse connection protection, short circuit protection, high temperature protection and other functions.
* Technical upgrade: Compared with traditional for PWM charge controller, the charging capacity, utilization efficiency of power generation , and conversion rate are greatly improved.
* Strong versatility: The wind turbine regulator can automatically identify 12v 24v voltage and adjust the switching, and is suitable for most areas around the world.

Precautions:
1. Confirm that the output voltage of the wind turbine is consistent with the rated voltage of the battery.
2. Connect the wiring in the following order, first connect the positive and negative poles of the battery, and then connect the three-phase voltage output of the fan.
3. Please strictly follow the instructions to connect the battery and wind turbine to the controller. Reverse or incorrect polarity connection may cause abnormal operation or even complete damage to the controller.

Specification:
Maximum input AC voltage: AC35V
Output DC voltage: DC12V/24V
Battery charging cut-off voltage: DC14.5V±0.3V/29V±0.3V
Maximum charging current: 15A 12V Maximum charging current: 10A 24V
Wind turbine speed limit voltage DC14.5V±0.3V, 29V±0.3V
Protection level: IP67
Static power consumption: 0.008A
Bearing power: 400W
Maximum bearing wind speed: lvl.12
Working temperature: -35℃-65℃
Input wiring: three-wire
Control mode: 12V/24V compatible
Installation : bolt fixed
The wiring is as shown in the schematic diagram; please do not reverse the positive and negative poles to avoid burning the controller.

Package Included:
1 x wind turbine controller

Note:
1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2.Please allow slight manual measurement deviation for the data.
