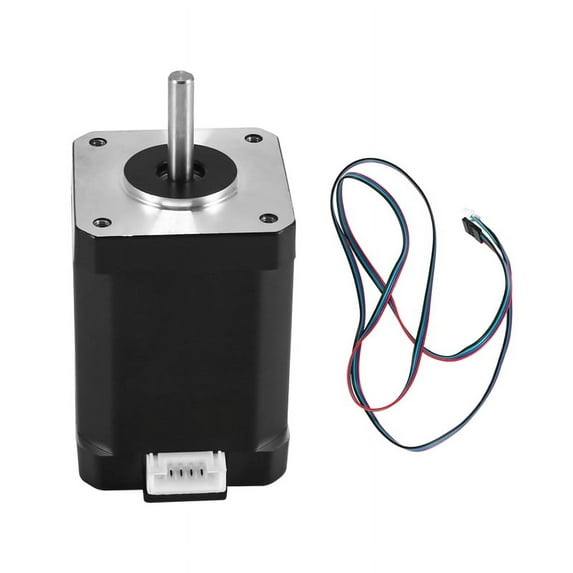

Hero image 0 of High Torque Nema 17 Bipolar STEPPER MOTOR 92Oz.In/65Ncm 2.1 A Extruder Motor, 0 of 7
High Torque Nema 17 Bipolar STEPPER MOTOR 92Oz.In/65Ncm 2.1 A Extruder Motor
(No ratings yet)
Key item features
- Very High Torque
- This is one of strongest bipolar Nema 17 stepper motor with 1.8 . step angle (200 steps/revolution).
- Each phase draws 2.1A, allowing for a holding torque up to 65Ncm(92oz.in).
- NEMA 17 bipolar 1.65 inch x1.65 inch x2.36 inch 4-wire
Specs
- Motor drive typeBipolar Stepper
- BrandUnbranded
- Weight500 g
- Has written warrantyNo
Current price is USD$24.59
Price when purchased online
Free 30-day returns
How do you want your item?
Columbus, 43215
Arrives between May 15 - May 22
|Shipping fee $2.00
Sold and shipped by DD Electronics
4.611111111111111 stars out of 5, based on 18 seller reviews(4.6)18 seller reviews
Free 30-day returns
Other sellers
$25.89
+Free shippingShipping, arrives by Fri, May 22 to Columbus, 43215
Sold and shipped by SP beauty
Free 30-day returns
About this item
Product details
Electrical Specification:
Motor Type: Bipolar Stepper
Step Angle: 1.8 .
Holding Torque: 65Ncm(92oz.in)
Rated Current/phase: 2.1A
Phase Resistance: 1.6ohms
Inductance: 3mH+/-20%(1KHz)
Physical Specification:
Frame Size: 42 x 42mm
Body Length: 60mm
Shaft Diameter: 5mm
Shaft Length: 24mm
D-cut Length: 15mm
Number of Leads: 4
Lead Length: 500mm
Weight: 500g
Colour: Black
material: metal
Connection:
Black(A+), Green(A-), Red(B+), Blue(B-)
Warning:
Make sure the motor connect to a constant current or chopper drive controller before you test motor.
Connecting the motor directly to a power supply the motor.
Package Contents:
1 * MOTOR
Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Motor Type: Bipolar Stepper
Step Angle: 1.8 .
Holding Torque: 65Ncm(92oz.in)
Rated Current/phase: 2.1A
Phase Resistance: 1.6ohms
Inductance: 3mH+/-20%(1KHz)
Physical Specification:
Frame Size: 42 x 42mm
Body Length: 60mm
Shaft Diameter: 5mm
Shaft Length: 24mm
D-cut Length: 15mm
Number of Leads: 4
Lead Length: 500mm
Weight: 500g
Colour: Black
material: metal
Connection:
Black(A+), Green(A-), Red(B+), Blue(B-)
Warning:
Make sure the motor connect to a constant current or chopper drive controller before you test motor.
Connecting the motor directly to a power supply the motor.
Package Contents:
1 * MOTOR
Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
- Very High Torque
- This is one of strongest bipolar Nema 17 stepper motor with 1.8 . step angle (200 steps/revolution).
- Each phase draws 2.1A, allowing for a holding torque up to 65Ncm(92oz.in).
- NEMA 17 bipolar 1.65 inch x1.65 inch x2.36 inch 4-wire
info:
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it. Â
Specifications
Motor drive type
Bipolar Stepper
Brand
Unbranded
Weight
500 g
Has written warranty
No
Warranty
Warranty information
Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
