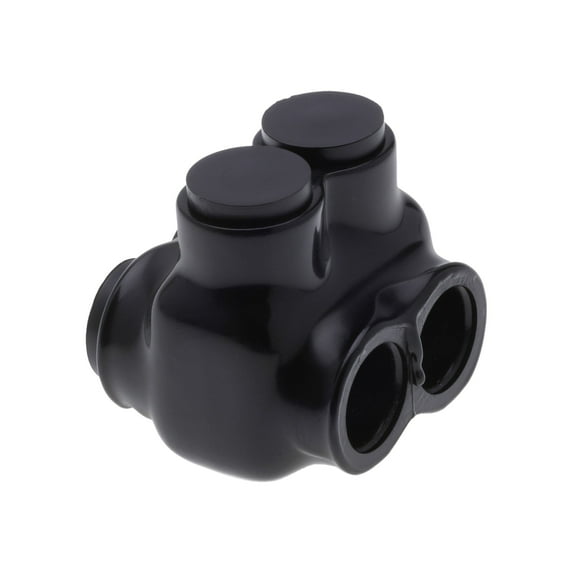

Insulated Tap Connectors 2 port dual-side Entry 2 AWG - 14 AWG

Insulated Tap Connectors – 2 AWG to 14 AWG (NEC 230.46 Compliant) Conversions Tech insulated tap connectors deliver fast, code-compliant line-side splicing for copper or aluminum conductors. Each connector ships pre-insulated, pre-filled with oxide inhibitor gel, and ready to handle up to 600 V / 130 A in the harshest indoor or outdoor environments. Key Advantages Secure Set-Screw Design – Adjustable 3/8-inch binding screws apply high contact pressure for low-resistance, vibration-proof connections. Dual-Sided Wire Entry – Opposing ports accept 2 AWG to 14 AWG conductors for maximum layout flexibility. NEC 230.46 & UL 486A/B Certified – Fully approved for service-equipment line-side taps; UL File E186991. Pre-Filled Oxide Inhibitor – Corrosion-blocking gel maintains low millivolt drop over years of service. UV-Resistant Plastisol Jacket – Rugged insulation shrugs off sunlight, chemicals, and abrasion down to -45 °C. Debris-Blocking Plugs – Removable caps protect set screws and wire wells during rough-in. Technical Specifications Wire Gauge Range 2 AWG – 14 AWG (Cu/Al) Conductor Class Class B & Class C Voltage Rating 600 V Max Current Aluminum 100 A  |  Copper 130 A Connector Body High-strength aluminum alloy Insulation Black UV-stabilized plastisol Temperature Range -45 °C to +90 °C (AL9CU) Standards cULus, UL 486A/B, NEC 230.46, RoHS Binding Screw Torque 35 in-lb (10-14 AWG) – 50 in-lb (2/0-3 AWG) Dimensions (H × W × L) 1.627 in × 1.825 in × 1.623 in (41.3 mm × 46.4 mm × 41.2 mm) Weight 0.126 lb (57 g) UPC 810166615136 Country of Origin USA Ideal Use Cases Line-side taps on service disconnects, CT cabinets, switchgear, and panelboards. Parallel or tap splicing in commercial, industrial, and renewable-energy arrays. Retrofits where conductor sizes vary and space is limited.
