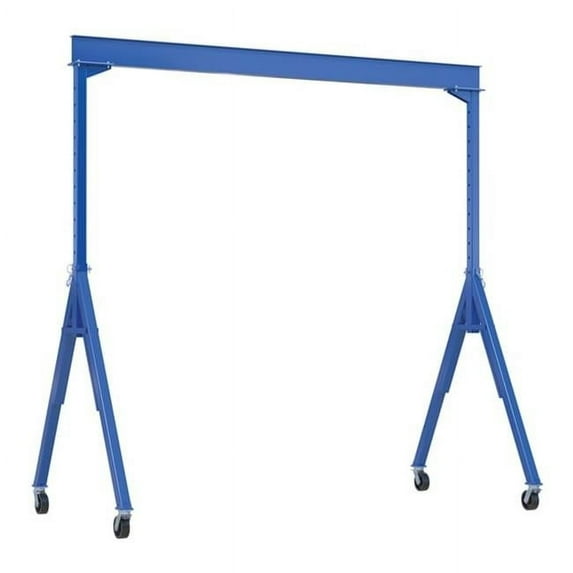

Vestil AHS-8-15-12-TLC 8000 lbs 15 x 12 ft. Steel Adjustable Height Gantry Crane with Total Locking Phenolic Casters - Blue

The adjustable height steel gantry crane is designed for transporting and positioning materials along the beams length. The cranes beam height can be adjusted to better conform to the working conditions making it both ergonomically friendly and cost effective. Facilitate easy mobility from one area to another with total locking casters. Height is adjustable in 6" increments. Do not move units while loaded. A painted blue finish protects the unit from rust. Designed for semi-permanent or permanent applications.

• Sleek painted finish
• Easy adjustable height can be done with fork truck or other overhead lifting device
• Beam length allows for use with items, both large and small
• All units comply with applicable CMAA and ANSI specifications

• Base Length (in.): 179.75
• Base Width (in.): 76.125
• Beam Height (in.): 10.125
• Beam Length (in.): 180
• Capacity (lbs): 8000
• Caster Diameter (in.): 8
• Caster Material: Polyurethane
• Caster Width (in.): 3
• Casters Swivel with Brakes (Qty): 4
• Color: Blue
• Color / Finish: Blue
• Flange Width (in.): 4
• Frame Material: Steel
• Increment Height Adjustment (in.): 6
• Maximum Clearance (in.): 145
• Maximum Overall Height (in.): 155
• Minimum Clearance (in.): 91
• Number of Casters / Wheels: 4
• Size: 77.375" W x 180" L x 155" H
• Uniform Capacity (lbs): 8000
• Usable Beam Length (in.): 149.75
• Wheel Diameter (in.): 8
• Wheel Material: Phenolic
• Wheel Width (in.): 3
