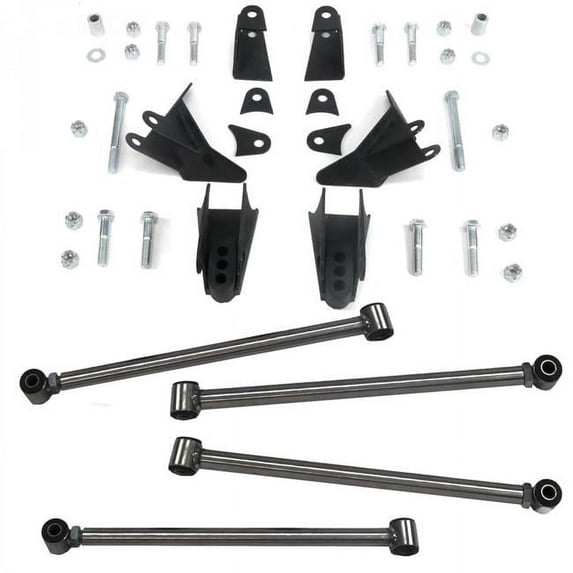

Helix Suspension Brakes & Steering 733203 Chevy FS Blazer 1973-1991 Heavy Duty Triangulated 4-Link Kit

Chevy FS Blazer 1973 - 1991 Heavy Duty Triangulated 4-Link Kit

Helix Triangulated Full Size Four Link Kits designed specifically foruse in your Chevy FS Blazer 1973 - 1991.

Whether your car is Stock or you are putting allot of horsepower through your rear end. Helixs New Heavy Duty Universal Triangulated 4-Link Kit is stronger than the rest. With the same .156 wall tubing that is the standard in drag racing applications Helixs full-sized 4-link kit will remain straight and perfectly aligned under even the most demanding applications. Helixs adjustable rear 4-link features extra long 28 inch main bars and 18 inch secondary bars to provide you with the maximum in suspension travel and adjustability. Sleeved bushings guarantee an extended life and reduced wear during operation. Completely MIG welded for maximum strength. All mounts are cut from 3/16 inch plate. Special infinitely adjustable CNC machined threaded rod ends are thicker than usual and thread over 2.5 inches into the 4-link tubes for both strength and adjustability. Fully plated mounting hardware included.

Stay ahead of the pack with Helix Suspension.

• Chevy FS Blazer 1973-1991 Heavy Duty Triangulated 4-Link Kit
• Made from high quality material

• Main Bar: 28 (711mm) Long
• Secondary Bar: 18 (457mm) Long
• Bar Wall Thickness: 4.1mm
• Heavy Duty Bushings: Yes
• Coil Over Brackets Positions: 3
• Coil Over Brackets: Yes
• Adjustable: Yes
• Bar Thickness: 25 mm
• Brackets Thickness: 5mm
• Brackets: Included
• Install Hardware: Yes
• Number of Bars: 4
• Bushing Included: Yes
• Shock Hardware: Yes
• Hardware: Yes
• Axle: 3 2 3/4
• Weight: 40 lbs
