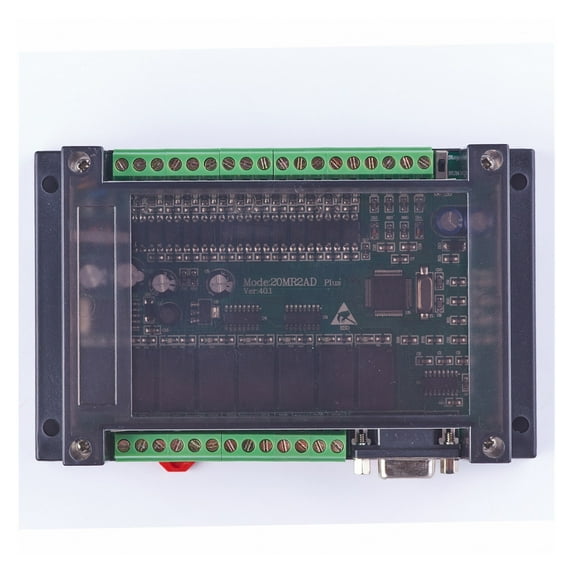

Programmable Logic Controller Plc With Enclosure 20MR FX2N 12 Input 8 Output 0~10V 2 Ad Relay Automatic Controller , Low Calorific Value

Programming, download, debugging and monitoring.

Instruction descriptions:

Write Program, parameters, comments

Read Program, parameters, comments

Check Program, parameters, comments

Computer monitoring function (convenient debugging)

Soft element batch function

Soft element landing function

Soft element test function

Clear memory function

Connection text HMI function (baud rate 9600, data bit 7, parity bit, even parity check (even), stop bit 1)

Connection touch screen Display function (baud rate 9600, data bit 7, parity bit, even parity check (even), stop bit 1)

Data retention during power-down function

Supports command sets special soft element:

M8000 (operation monitoring contactoror), M8001 (operation monitoring back contactoror).

M8002 (initialization pulse contactor), M8003 (initialization pulse reverse contactor).

M8004 (error indication contactor).

M8011 (10 milliseconds clock pulse), M8012 (100 milliseconds clock pulse), M8013 (1 seconds the clock pulse), M8014 (1 time sharing the clock pulse).

M8020 (zero mark), M8021 (borrow mark), M8022 (carry flag).

M8029 (instruction execution end mark).

M8033 (memory keep contactor).

M8034 (banned output contactor).

More reference FX1N series.

Basic instruction:

LD, LDI, AND, ANI, OR, ORI, OUT, (OUTT, OUTC), SET, RST, ANB, ORB, MPS, MRD.

MPP, INV, the LDP, LDF, ANDP, ANDF, ORP, ORF, RET, OUTM, SETM, RSTM, OUTS, SETS,

RSTS, PLS, PLF, MC, MCR, PI, END

Step-by-step instruction:

STL: support maximum 8 road parallel branch, different state number can have a double coil.

contactor compare instruction:

LD > =, LD < =, LD >, LD < < >, LD, LD =, AND > =, AND < =, AND >, AND < < >, AND, AND, OR AND = > =, OR < =, OR >, < > OR < AND, OR, OR =.

Transfer and compare instruction:

MOV, CML, XCH, BCD, BIN, CMP, ZCP, FMOV. SMOV. BMOV.

Arithmetic instruction:

ADD, SUB, MUL, DIV, INC, DEC, WAND, WOR, WXOR, NEG.

Cyclic shift instruction:

SFTR, SFTL, SFWR, SFRD.

Data processing instruction:

ZRST, DECO, ENCO.

Program flow instruction:

CJ, CALL, SRET, IRET, EI, DI, FEND, WDT, FOR, NEXT.

Convenient instruction:

IST, ABSD, INCD, ALT, RAMP,

High speed processing instruction:

REF, REFF, MTR, HSCS, HSCR, SPD, PLSY, PWM, PLSR (two way pulse output, Y0 Y1, mouth).

Peripheral equipment I/O port:

DSW, SEGL, FROM, TO.

Peripheral equipment SER instruction:

RS, PRUN, ASCI, HEX, CCD, VRRD, VRSC, PID.

Positioning instruction:

ABS, ZRN, PLSV, DRVI, DRVA.

Clock operation:

TCMP, TZCP, TADD, TSUB, TRD, TWR, HOUR.

Support 32-bit instruction!
