0-190ohm Stainless Steel Fuel Level Sensor 125 150 200 300 400mm For 52mm Digital Fuel Level Gauge Water Tank Level Indicator ,High Precision

0-190ohm Stainless Steel Fuel Level Sensor 125 150 200 300 400mm For 52mm Digital Fuel Level Gauge Water Tank Level Indicator

Liquid Level Sensor Specifications:

- Protection ank: IP67

- Resolution range: 21 mm

- Assembly: SAE standard 5 holes

- Rated current for alarm switch: 500mA

- Operating temperatures: - 40 to 85 Celsius

- Fit for Fuel Level Gauge and Water Level Gauge

- Sensor Length :100MM~1500MM

- Mounting: 5 pieces of M5 screws and 2 mm thick gasket

- Output signal: 0~190 ohm (Standard European)

Sensor Connection:

Blue wire: connect the ground wire

Brown wire: connect the gauge signal wire

Empty oil level 0 ohm

Full oil level 190 ohm

Sensor Length:

100mm, 150mm, 200mm, 250mm, 300 mm ,350 mm ,400mm, 450 mm,500mm, 550mm, 600mm, 650mm, and so on

Output signal:

0~190 ohm (Standard European), 240~33 ohm (Standard American) and so on

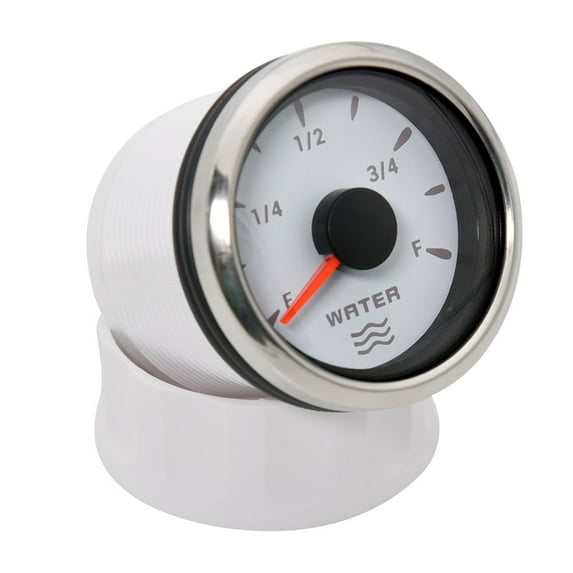

52mm Display Gauge

- Input signal: 0-190 ohm

- Indication range: E-F

- Working current: 60mA

- Install diameter: 52mm

- Working voltage: 9~32VDC

- Storage temperature: -40~+85

- Operating temperature: -30~+75

- Water Level Gauge Waterproof : front cover IP67 ,back cover IP5

- Backlight: (7 colors ) red.green.blue.yellow.olive . orange.purple

Package Include :

Package1 Include:

Only 1 X 52mm Fuel Level Gauge

Package 2 Include:

1 x 52mm Fuel Level Gauge

1 x Fuel Level Sensor

1 x Gasket

5 x Screws
