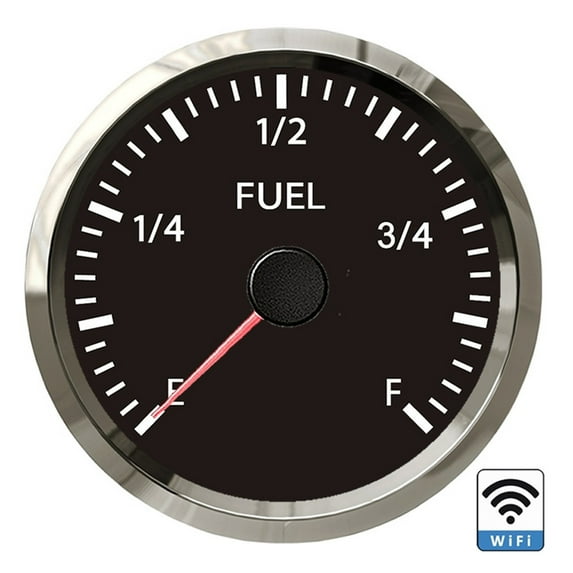

0-75ohm 0-190ohm 240-33ohm 52MM Water Fuel Level Gauge New Wifi Water Level Meter E-1/4-1/2-3/4-F Oil Tank For Car Motorcycle ,High Precision

Stainless Steel Bezel 52mm Wifi Fuel Level Gauge Waterproof Marine Boat Car Oil Tank Meter 10-180ohm 240-33ohm 9-32VDC

Feature:

- Waterproof Rating: IP67

- Working Current: <120mA

- Working Voltage: 9-32VDC

- Working Temperature: -30-+70

- Storage Temperature: -40-+85

- Programmable Needle Running Speed

- 316 Anti-Crossion Stainless Steel Bezel

- Electrical Fuel Gauge with Stepper Motor 270 degrees

- Compatible with all types and ranges Ohm Signal Sensor

- Support PC/Laptop/Mobile Phone WiFi connection Configuration

- Support internal WiFi connection to configure fuel sensor ohm signal input range.

Wifi Gauge instrustion:

[1].Cut a 52mm (2 1/16 ) diameter panel hole (II).

You will need a minimum clearance of 55mm (2 3/16 )behind the panel to fit the gauge.

[2]. Remove fastening ring (I).

There is an alignment tab on the gauge body (III), place the gauge in the panel hole and mark the position of this tab to correctly align the gauge.

[3].Insert gauge through panel from the front, fit and tighten fastening ring (I) from the rear.

[4].Power on the WiFi Gauge, and then search WiFI SSID as below from your PC or Mobile Phone:

WiFi SSID: S051A-xxxxxx(It Starts with S0151A)

Default WiFi Password: 12345678

[5].Scan the code or input IP address to browser after connect wifi:192.168.4.1

Then you can see the setting menu:

[6].Setting Menu:

"Signal" , "Angle", "Resistance","Hand Speed""Voltage""PASS WORD""OLD PASSWORD""NEW PASSWORD""CONFIRM NEW PASSWORD"

1)" Signal" sets Resistance Ohm Signal Range

Range: 0~2000 , and you must set all the 5 signal value

2) "Angle" sets the Needle Running Angle, range: 0-290 Degrees

3) " Resistance": You must keep it selected as default if it is:

Fuel Gague, Water Level Gauge, Oil Pressure Gauge, Water Temperature Gauge

"Voltage" : not selected

4) "Hand Speed" sets the time the needle runs from min to max value,default: 30s

5) "PASSWORD" default is 00000000

6) "OLD PASSWORD"

7) "NEW PASSWORD"

9) "CONFIRM NEW PASSWORD"

Package:

1x 52mm Wifi Gauge

1x Wire cable

1x Installation Instruction
