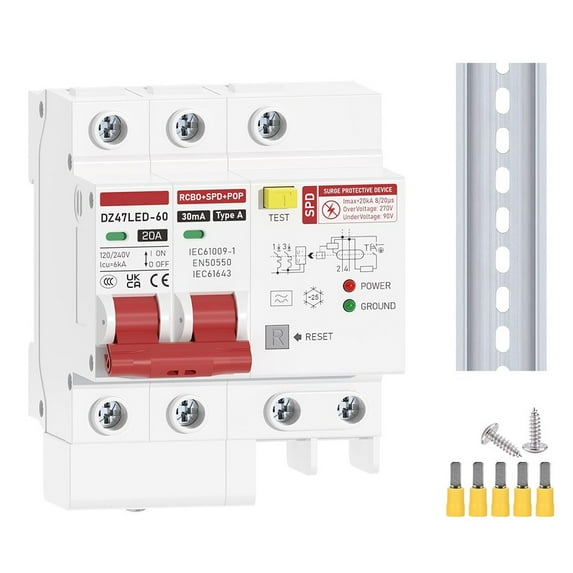

Type A Residual Current Circuit Breaker 2P With Flash Protection 30Ma 120V/240V

Features:
Functions：6-fold protection: overload protection, surge protection, switch, leakage protection, flash protection and short circuit protection
FI+LS：Type A residual current device with built-in overload and short circuit protection. When electric shock or leakage current exceeds a predetermined value, short circuit or overload, the residual current device can automatically cut off the power supply in a short time to protect personal safety and prevent accidents caused by leakage.
Surge protection: Type 2 surge arrester with surge protection for level C, D flash protection, flash equipotential bonding, flash strike fast response, pressure relief, protecting household appliances and your safety. This greatly reduces the possibility of accidents.
Performance standards: GB16917.1 "Residual current circuit breakers with integral overcurrent protection for use in households and similar applications (RCBO) Part 1: General rules", GB 18802.2, IEC61643-1 and GB 500057 "Construction code for protecting structures against flash strikes".
Rated leakage current (8/20): 6kA; Rated voltage: 120/240V 50/60Hz AC; Rated residual current: 30mA; Rated current: 10-60A; Trip characteristics: C; Mounting: DIN rail TH35, number of modules 4

Specification:
Part Name: Flash protection leakage protector
Color: White
Material: Plastic
Model: DZ47LED LNE
Rated current: 10-60A
Poles: L+N+PE or LL PE
Rated voltage Ue: 120V/240V AC
Insulation voltage Ui: 500V
Rated breaking capacity: 6kA
Overvoltage and undervoltage protection range: 270V±5V
Undervoltage protection value: 90V±5V
Rated impulse withstand voltage (1.2/50) Uimp: 4kV
Residual working current working type: Type A
Residual leakage trip current: 30mA
Thermo-Magnetic Release Characteristic: C-Curve (5-10ln)
Maximum discharge Current In 8/20μs: 20kA
Nominal discharge Current In 8/20μs: 10kA
Response time t (ns): <25
Ground terminal connection stranded copper wire: 6mm2
Size: 72*77*95mm

Package Contents:
1*Flash protection leakage protector
