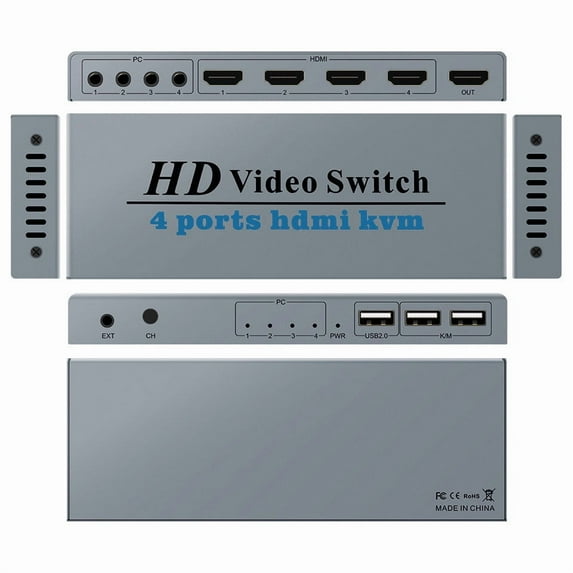

KIPLINK 4x1 HDMI KVM Switch, 4K@30Hz, 4 Computers to 1 Display, USB Sharing

Key Features:

• Control 4 Computers: Manage four computers with one set of peripherals (keyboard, mouse, monitor).
• 4K@30Hz Resolution: Supports resolutions up to 3840x2160 at 30Hz, backward compatible with lower resolutions.
• USB Peripheral Sharing: Share USB devices like printers, flash drives, and other USB peripherals.
• Multiple Switching Methods: Switch between computers via front panel buttons, wired remote control, or keyboard hotkeys.
• Automatic Resolution Adjustment: Automatically adjusts to the connected display's optimal resolution.
• LED Indicators: Clearly show the active computer.
• Plug and Play: No drivers or software installation required.
• Compact Design: Saves desk space.
• Wide Compatibility: Compatible with various operating systems.

Specifications:

• Input Ports: 4x HDMI
• Output Port: 1x HDMI
• USB Ports: 4x USB Type-A (for keyboard, mouse, and other peripherals)
• HDMI Standard: HDMI 1.4
• HDCP: HDCP 1.2
• Supported Resolution: Up to 4K@30Hz (3840x2160), backward compatible
• Data Rate: 10.2Gbps
• Pixel Clock: 225MHz (Maximum)
• Impedance: 100Ω
• Power Consumption: 3W
• Operating Temperature: -5℃ to 70℃
• Operating Humidity: 5% to 90%
• Housing Material: Metal
• Dimensions: 175 x 65 x 19.5 mm
• Weight: 254g (Net), 475g (Packaged)
• Input/Output Cable Length: Up to 10 meters

Operation:

1. Connect your computers' HDMI outputs to the KVM switch's HDMI input ports.
2. Connect your monitor to the KVM switch's HDMI output port.
3. Connect your keyboard and mouse to the KVM switch's USB ports.
4. (Optional) Connect other USB peripherals.
5. Switch between computers using the front panel buttons, wired remote, or keyboard hotkeys (if supported).

Package Contents:

• 1x KIPLINK 4x1 HDMI KVM Switch
• 1x Wired Remote Control
• 1x User Manual
