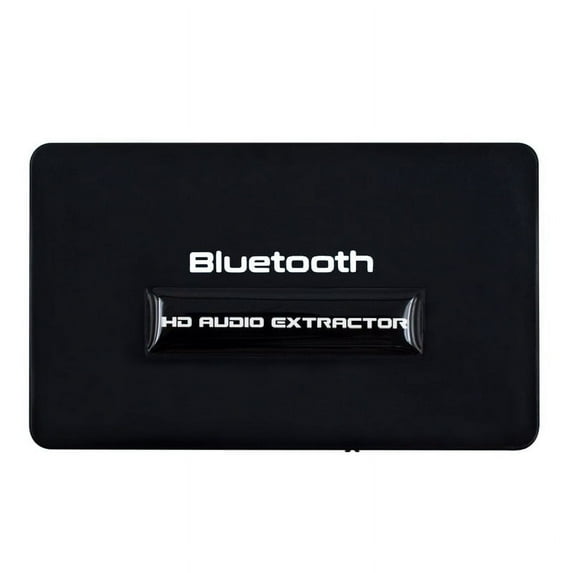

KIPLINK HDMI Audio Extractor - Bluetooth 5.3, Optical/3.5mm, 4K

Key Features:

• HDMI Audio Extraction: Splits HDMI audio to Bluetooth 5.3, SPDIF (optical), and 3.5mm stereo outputs.
• Bluetooth 5.3: Built-in Bluetooth 5.3 receiver for wireless audio streaming to Bluetooth speakers or headphones.
• 4K@30Hz Support: Supports HDMI resolutions up to 4K@30Hz.
• Multiple Audio Modes: Selectable audio modes: BT (Bluetooth), 2.0CH (stereo on 3.5mm and SPDIF), and 5.1CH (5.1 surround sound on SPDIF).
• LED Indicators: Clear LED indicators for power and Bluetooth connection status (pairing, connected, working).
• Plug and Play: Simple setup with no drivers required.
• Wide Compatibility: Supports various audio formats, including DTS-HD, Dolby TrueHD, LPCM 7.1, DTS, Dolby-AC3, and DTS.

Specifications:

• Product Name: HDMI Bluetooth Audio Extractor Splitter
• HDMI Version: HDMI 1.4b
• Input Port: 1x HDMI
• Output Ports: 1x HDMI, 1x SPDIF (Optical), 1x 3.5mm Stereo, Bluetooth 5.3
• Bluetooth Version: Bluetooth 5.3 (Bluetooth Name: T3)
• Audio Mode Options: BT, 2.0CH, 5.1CH
• Video Color Format: 24/30/36 bit deep color
• Audio Formats: DTS-HD, Dolby TrueHD, LPCM 7.1, DTS, Dolby-AC3, DTS
• HDMI Input/Output Resolutions: 480p, 576i, 720p@50/60Hz, 1080i@50/60Hz, 1080p@24/50/60Hz, 4K@30Hz
• Operating Temperature: 0-55°C
• Bluetooth Transmission Distance: <10m
• HDMI Cable Distance (Input/Output): ≤15m AWG24 HDMI standard cable
• Power Supply: 5V/1A
• Dimensions: 76mm x 46mm x 15.5mm
• Weight: 31.4g (unit), 48g (packaged)

Interface Description:

• HDMI Input
• HDMI Output
• SPDIF Output
• 3.5mm Audio Output
• Mode Switch (BT/2.0CH/5.1CH)
• Power Input (Micro USB)
• LED Indicators (Power, Bluetooth, Audio Mode)

Package Contents:

• 1x HDMI Bluetooth Audio Extractor Splitter
• 1x USB Power Cable
• 1x User Manual
