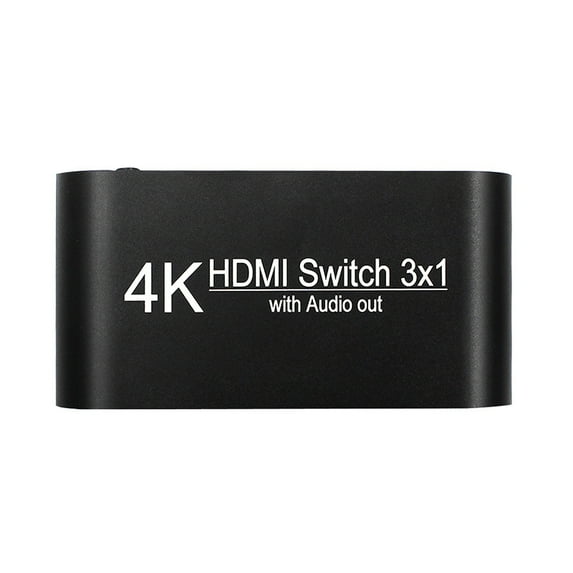

KIPLINK 3x1 HDMI Switch with Audio Extractor, 4K@30Hz, HDR, 4:4:4, Optical/RCA Audio Out, Remote

Key Features:

• 3 HDMI Inputs, 1 HDMI Output: Connect and switch between three HDMI source devices (e.g., Blu-ray player, game console, streaming device) to one HDMI display.
• Audio Extraction: Extracts audio from the selected HDMI input to optical (SPDIF) and RCA (L/R) stereo audio outputs.
• 4K@30Hz Resolution: Supports resolutions up to 4K@30Hz for high-definition video.
• HDR Support: Supports High Dynamic Range (HDR) for enhanced contrast and color.
• 4:4:4 Color Sampling: Supports 4:4:4 chroma subsampling for accurate color reproduction.
• Multiple Audio Modes: Offers 2.0, 5.1, and Pass audio modes for flexible audio output options.
• SPDIF and RCA Audio Outputs: Provides both optical (SPDIF) and RCA (L/R) stereo audio outputs for compatibility with various audio devices.
• Audio Return Channel (ARC) Support: Enables audio to be sent from the TV back to an audio receiver through the HDMI connection (if your TV and receiver support ARC).
• LED Indicators: Clearly indicates which input is currently selected.
• IR Remote Control: Conveniently switch between inputs using the included IR remote.
• No Signal Loss: Maintains high-quality video and audio signals.

Specifications:

• Input Ports: 3x HDMI
• Output Ports: 1x HDMI, 1x Optical (SPDIF), 1x RCA (L/R) Stereo Audio
• Supported Resolutions: Up to 4K@30Hz
• Supported Video Formats: 8bit YCbCr 4:4:4
• Supported Audio Formats (SPDIF): Dolby Digital (AC3), DTS
• Audio Modes: 2.0, 5.1, Pass
• Power Supply: USB Powered

Operation:

1. Connect your HDMI source devices to the HDMI input ports on the switch.
2. Connect your HDMI display to the HDMI output port.
3. (Optional) Connect your audio receiver or headphones to the optical or RCA audio outputs.
4. Connect the USB power cable to the switch and a USB power source.
5. Use the remote or the button on the switch to select the desired input source.

Package Contents:

• 1x KIPLINK 3x1 HDMI Switch with Audio Extractor
• 1x IR Remote Control
• 1x USB Power Cable
• 1x User Manual
