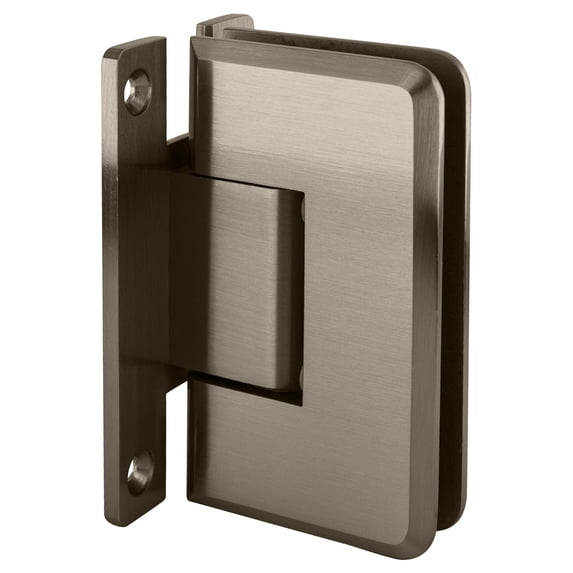

CRL C0L067BN Brushed Nickel Cologne Series Wall Mount 'H' Back Plate Positive Close Hinge

The Positive Close Cologne Hinge contains an internal grooved pivot pin that allow the door a precise and positive closing action. This is a different closing action than the typical self-centering Cologne Hinges. Stocked in our four most popular finishes, and available in other finishes upon special order.
Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm).
Using three hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum door width of 36" (914 mm).
SPECIFICATIONS:
Glass Thickness: 3/8" to 1/2" (10 to 12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90 Degrees Inwards and Outwards
Closing Type: Positive Closing to Zero Degrees
Cut-Out Required
Includes: Gaskets, Phillips Screws, Allen Screws, and Glass Fabrication Dimensions
Custom finishes are available on request. Contact DK Hardware Sales Shower Door Department.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.

.
