CAIJIEXI Electrodes Plasma Tips Nozzle 50D Accessories for Plasma Cutter Special

Features:

brand new and high quality
Made of high-quality materials,
46 pieces of plasma electrode nozzle nozzles for plasma cutting machine 40D CUT40 50D for CUT50
Can be quickly replaced
easy to use
High quality and long service life
Good thermal conductivity
High mechanical strength
Wide range of compatible models


Product parameters:

Material: porcelain tip, shunt: ceramic; electrode, tip: copper
Porcelain mouth size: upper inner diameter 9mm, lower inner diameter 17mm, height 30mm
Electrode size: diameter 3.3mm, length 28.5mm, protrusion diameter 7.7mm
Electric nozzle size: height 11mm, lower diameter 11.5mm, upper diameter 8mm
Shunt size: outer diameter 8.5mm, inner diameter 5.5mm, height 6mm"
Applicable welding machine models: CUT-40, CUT-40D, LGK-40, CT312, CT312D, CT416, CT-416D, CT518, CT518D, SUPER160, SUPER160P, etc.
Suitable machine brands: for Rilon, Riland, Jasic, Mitech, Chiry, UNT, Krypton, for Berlan, Longetivity, etc.
Generally suitable for: 30 amp, 40 amp and 50 amp plasma cutting machine using for PT-31 or -40 type cutting torch
Examples of machines using for PT-31 and -40 cutting torches are as follows: (not including cutting torches)
CUT-30xx
CUT-40xx
CUT-50xx
CT-312xx
CT-416xx
CT-418xx
CT-518xx
CT-520xx
LGK-40xx
SUPER-160xx
SUPER-200xx
SUPER-250xx
SUPER-5160xx
SUPER-5180xx
SUPER-5200xx

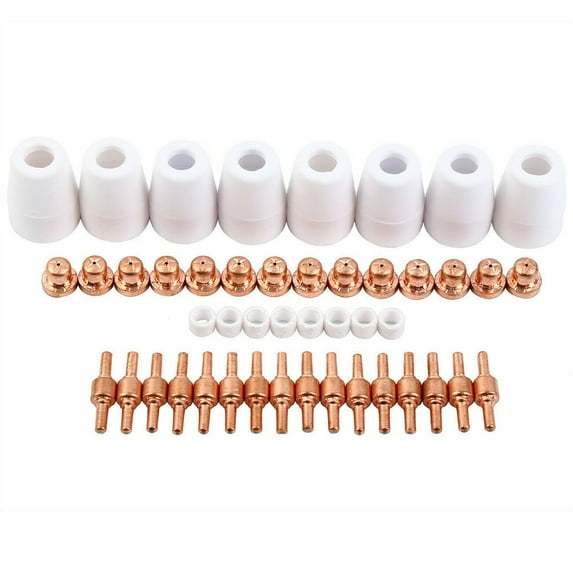

Package list:

14 * Tip
16 * Electrode
8 * High-end shield cup
8 * Swirl ring

Note:

1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2.Please allow slight manual measurement deviation for the data.
