5Pcs 17Am Motor Thermal Protector Normally Closed Temperature Controller Stainless Steel Gb14536.1-1998, Gb14536.10-1996 17Am022-75C

Features:

Temperature switch The temperature control switch is an over-temperature and over-current protector with a small size, large contact capacity and fast jumping action.

Motor size is less than 1HP;

Applied to ballasts of fluorescent lamps;

Transformers;

Lighting fixtures;

Automobile engines;

Seafood machines;

Daily electrical appliances; Tropical blankets and electric blankets

Specifications:

Part name: Temperature switch

Material: Stainless steel

Color: Black

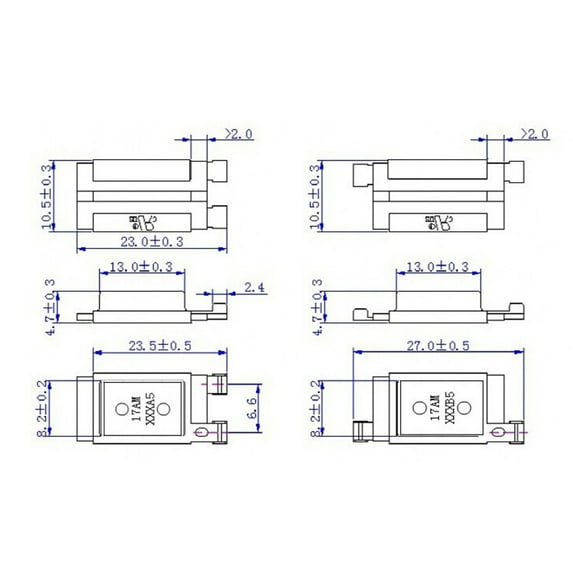

Size: As shown in the figure

(1) Product name: Thermostat

(2) Product model: KSD9700 series

(3) Product type: Thermal bimetallic strip jump type automatic reset thermostat

(4) Product model meaning: KSD9700-口口口/05P(C)

Shell material is Metal

Casing material is plastic

Working current

(5) Operating temperature range: 40-150℃ (each 5℃ interval is 1 level)

Operating temperature

(6) Operating temperature tolerance: ±5℃

(7) On-off temperature difference: 10-50℃

(8) Electrical performance: AC.250V.50-60Hz.5A

(9) Contact resistance: not more than 100m (length is less than 80mm)

(10) Normal insulation resistance: greater than 2MQ (DC500 megohmmeter)

(11) Normal electrical strength: AC1500V150-60 Hz. No breakdown or flashover for 1 minute (12) Contact state: Normally closed (temperature rises, contacts open; temperature drops, contacts close)

(13) Contact form: single-pole single-throw

(14) Action type: 1B

(15) Durability: 10,000 times at rated current of resistive load.

(16) Heat resistance: The installation temperature does not exceed 120% of the operating temperature.

(17) Structure: built-in

(18) Implementation standard: GB14536.1-1998, GB14536.10-1996

Package Content:

5× temperature switch

Note:

1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
