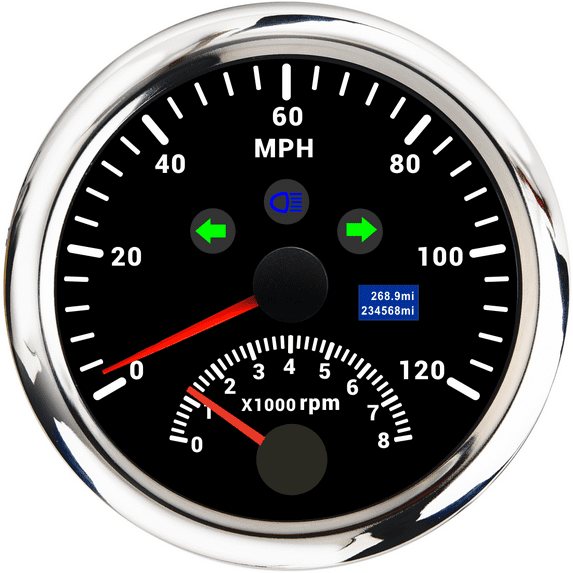

Geloo Digital GPS Speedometer 120MPH with 8000 RPM Tachometer Gauge for Car Boat Marine Speedometer

Geloo Digital GPS Speedometer 120MPH with 8000 RPM Tachometer Gauge for Car Boat Marine Speedometer. The signal comes directly from the satellite signal receiver(GPS Antenna), don't need other speed sensor. Speedometer gauge has the advantages of high precision, quick location confirmation and short start up time. Stepper motors used for full range of stepping gauges. Less power consumption, longer life, etc.

Specification:

Condition: New

Fixing dimension: 85mm(3-3/8'')

Indicating Range:0-120MPH and 0-8000rpm

Working Voltage: 12V/24V

Total Mileage Adjustable, Mileage Range: 0-99999.9 miles

GPS Blind Area Odometer Compensation

OverSpeed Buzzer Alarm (Value Adjustable)

Indication light: Left,high beam , right.

Backlight: Red

Package Included:

1x speedometer

1x GPS Antenna

1x Installation Instruction

Setting

1. Press and hold the rubber button on the back of the meter for 3 seconds to enter the setting mode. If you release the button for more than 3 seconds, it will exit the setting mode.

2. Press and hold the button, the value keeps increasing; release the button and press the button again, the value keeps decreasing. The longer the button is held down, the faster the value counts. The minimum step value of counting is 0.1, and the adjustable range is 1.0-360.

3. After adjusting the speed ratio to meet your requirements, please release the button. After 3 seconds, the tachometer will automatically save the result you set. If the settings do not meet your requirements, please reset them.

4. Overspeed alarm: After power on, short press the button on the back of the instrument twice to enter the overspeed alarm adjustment mode, and then press and hold the button on the back to display the overspeed alarm adjustment. Press and hold the button repeatedly, and the value will continue to increase. It is automatically saved after 5 seconds. If the settings do not meet your requirements, please reset them.

5. The default stroke is a single accumulative, and it will not be cleared when the power is off. Long press the button to clear it.

6. Turn on the instrument, the star searches for the signal, and the LCD displays "gps--". If there is still no GPS signal after 3 minutes, the LCD displays "Err".
